Transfer Case Control Module Connector End View (C1)

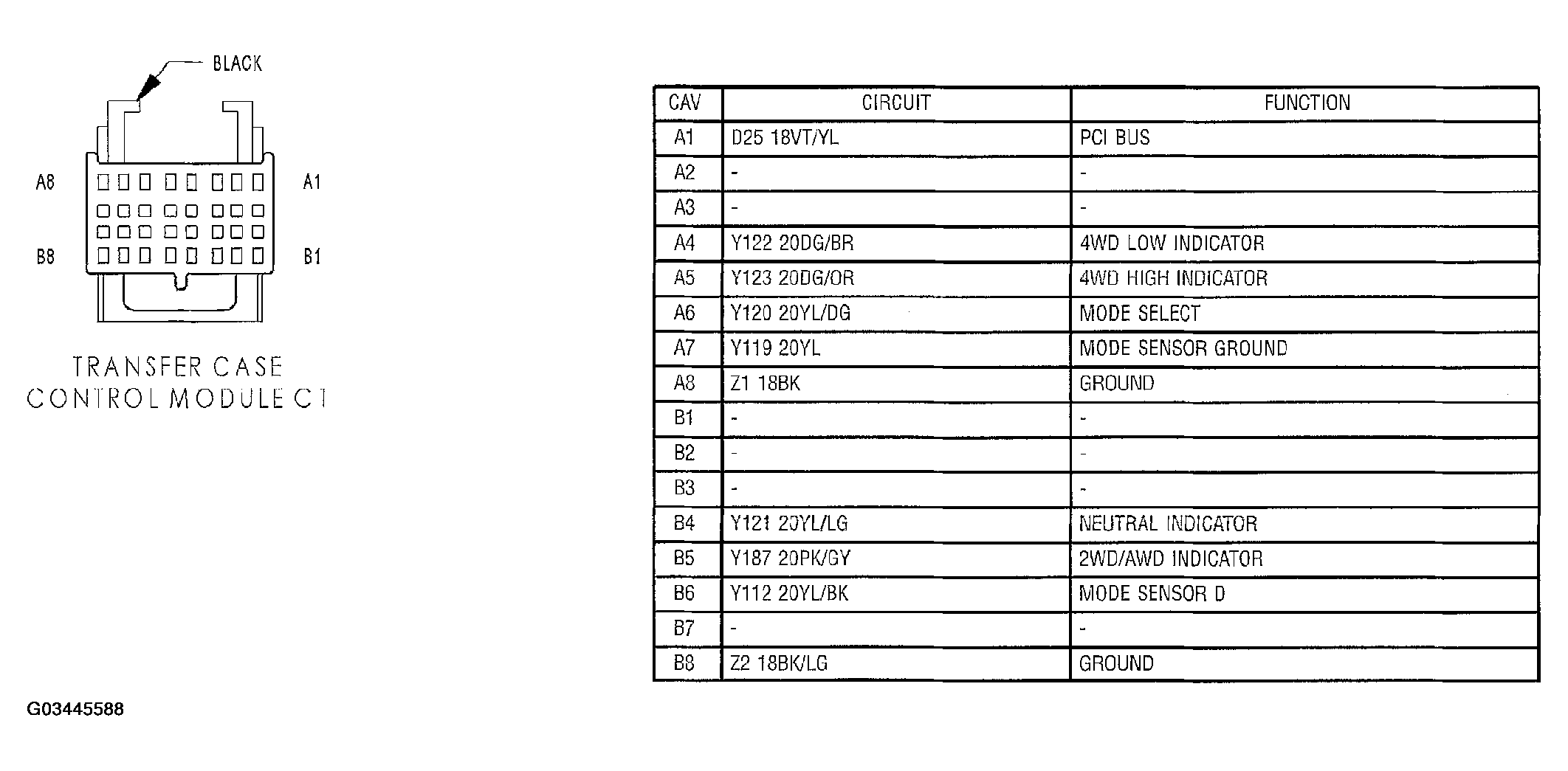

Fig 1: Transfer Case Control Module Connector End View (C1)

G03445588

Courtesy of DAIMLERCHRYSLER CORP.
