Input Speed Sensor - Gray 2 Way Connector End View
Input Speed Sensor - Gray 2 Way Connector End View

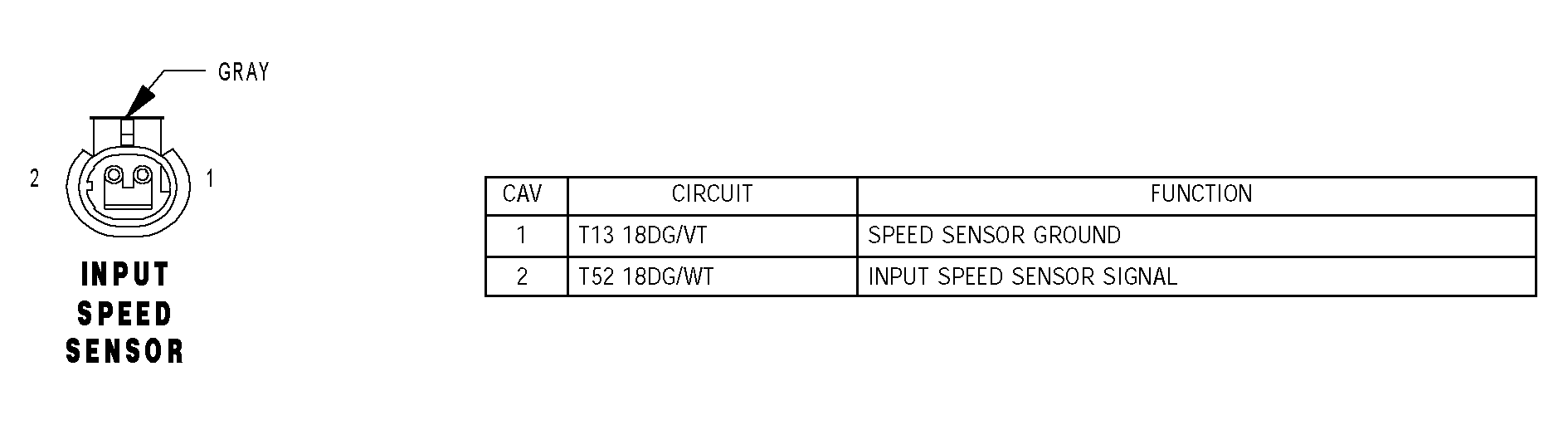

Fig 1: Input Speed Sensor - Gray 2 Way Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
