Inlet Air Temperature Sensor Connector End View

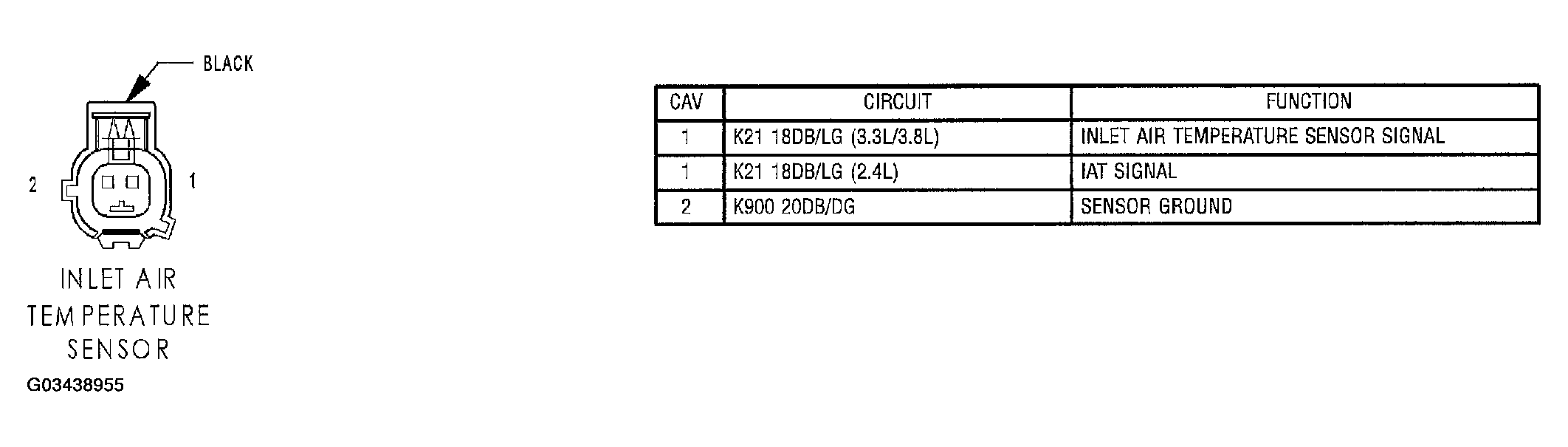

Fig 1: Inlet Air Temperature Sensor Connector End View

G03438955

Courtesy of CHRYSLER GROUP, LLC
