DTC P0463: Fuel Level Sending Unit Volts Too High

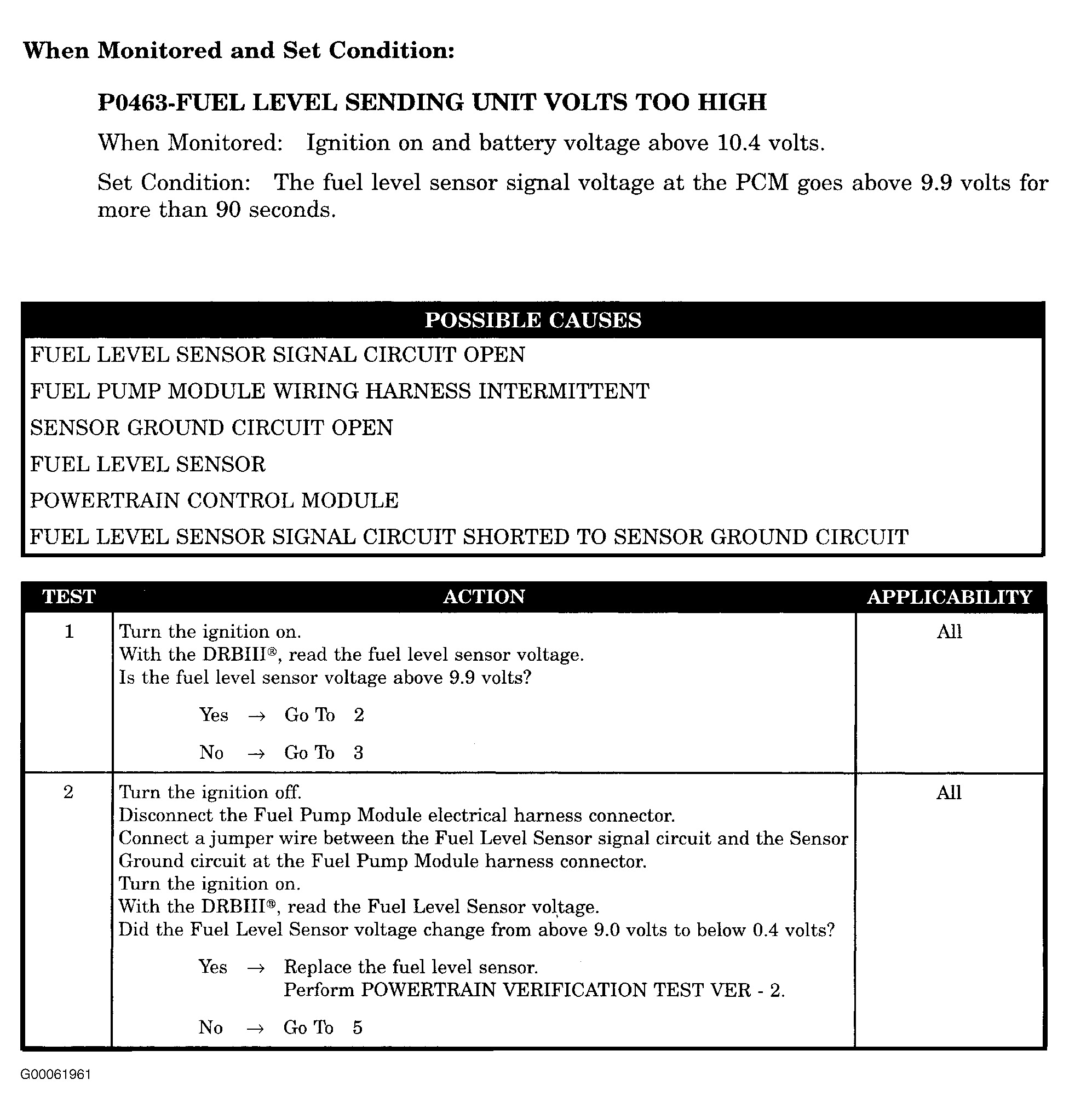

Fig 1: DTC P0463: Fuel Level Sending Unit Volts Too High (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

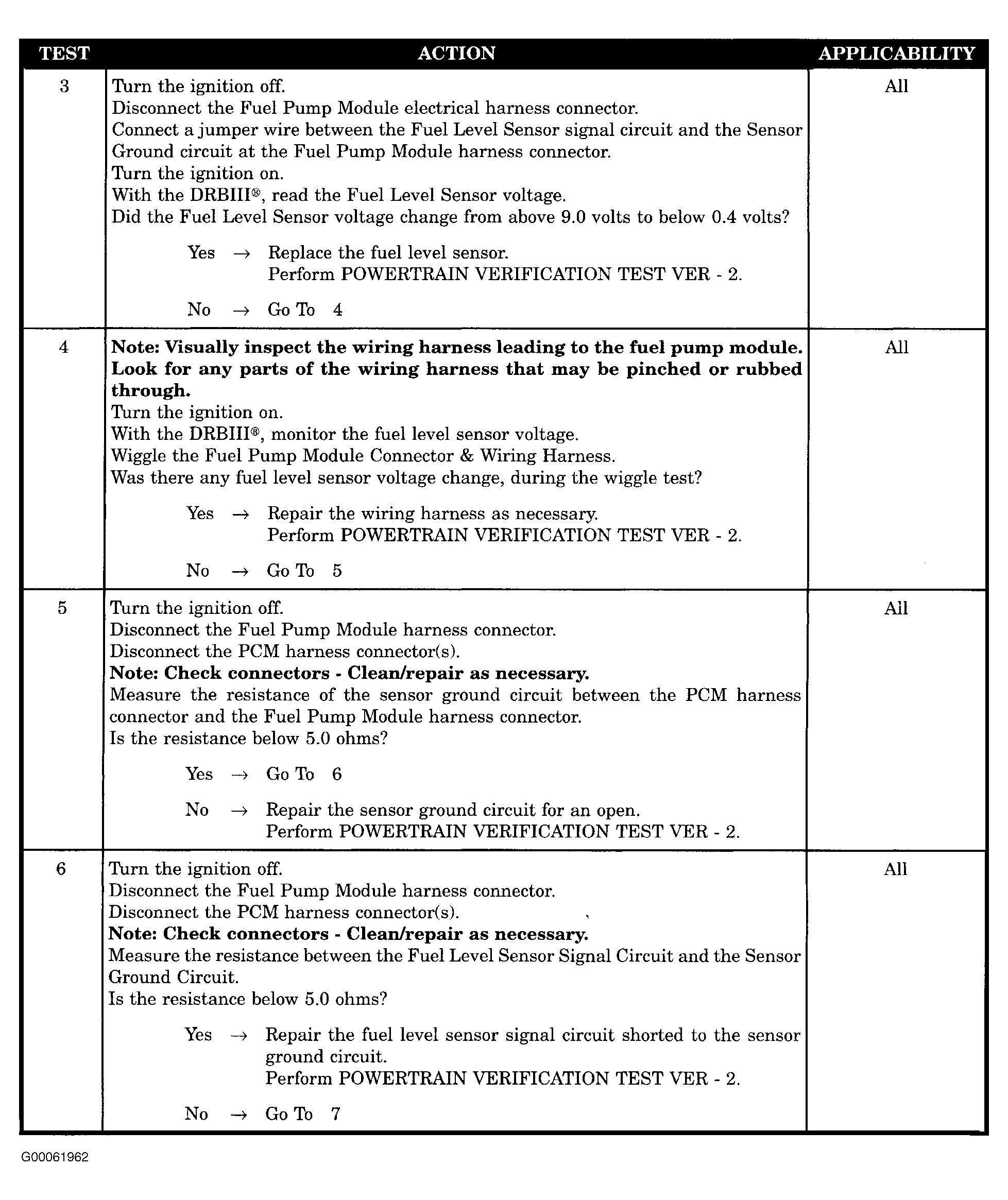

Fig 2: DTC P0463: Fuel Level Sending Unit Volts Too High (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

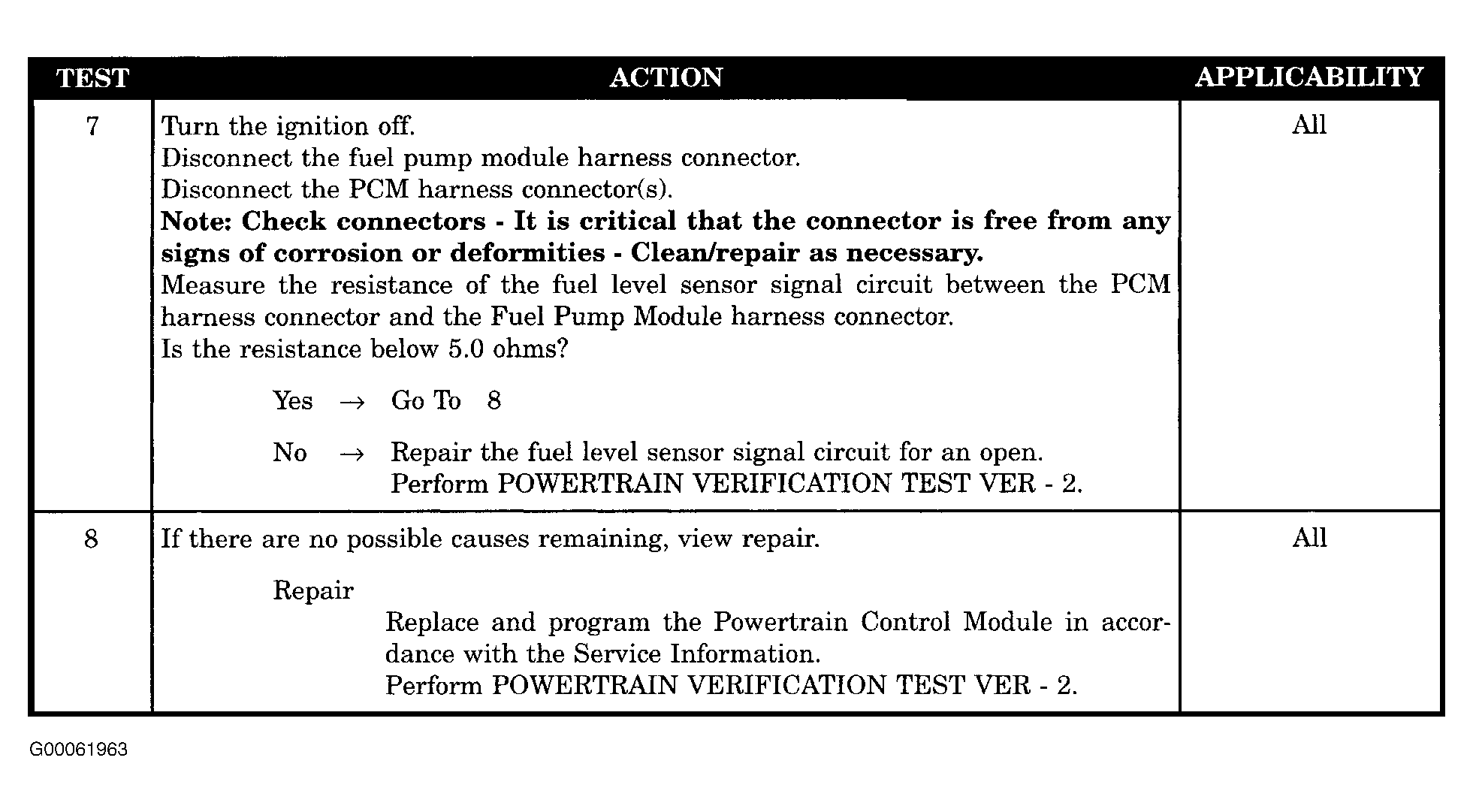

Fig 3: DTC P0463: Fuel Level Sending Unit Volts Too High (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION
