Bus System Communication Failure

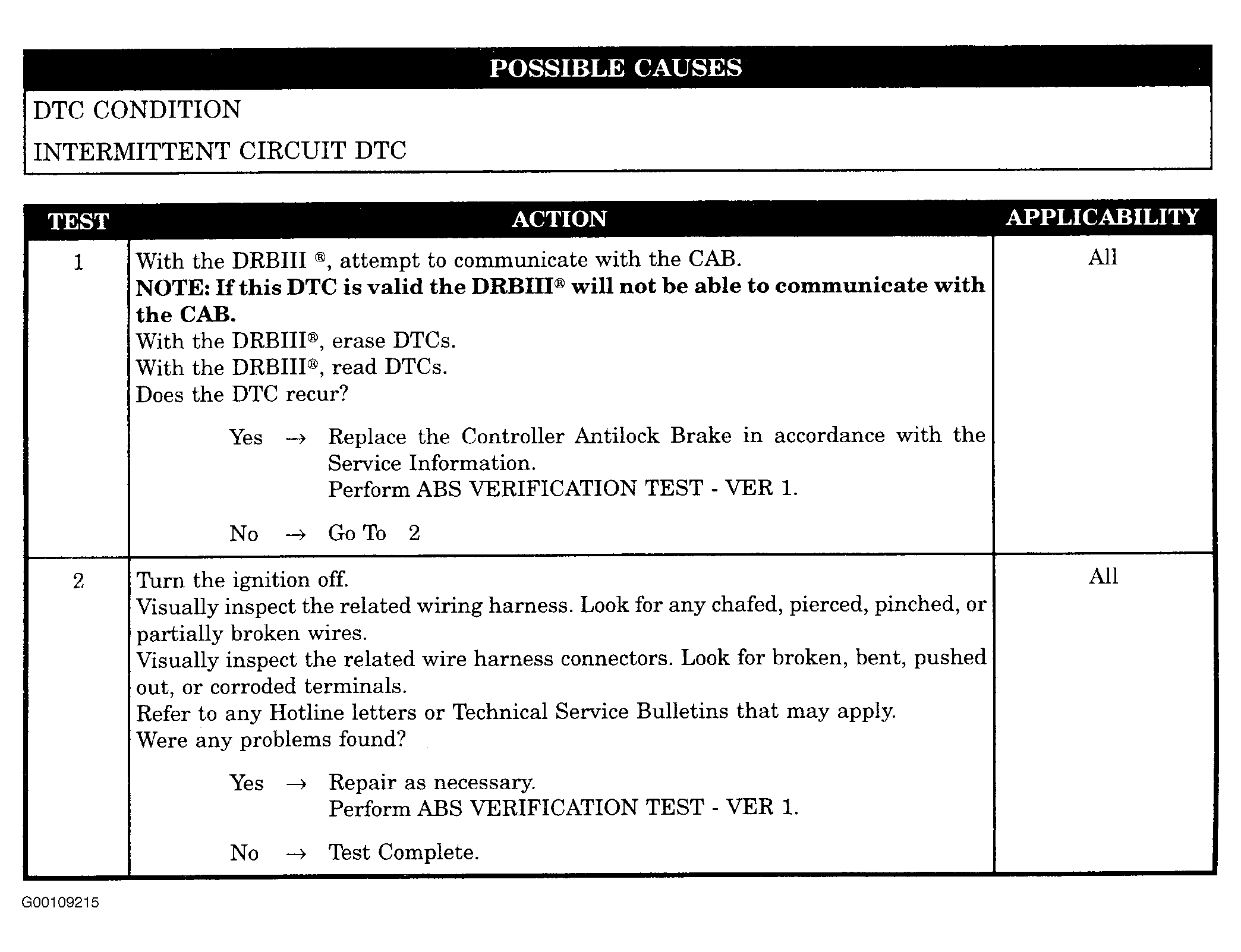

Fig 1: BUS System Communication Failure

G00109215

Courtesy of DAIMLERCHRYSLER CORPORATION
