Door Glass: Removal
- Remove door trim panel. See DOOR TRIM PANEL .
- Remove door stanchion outer cover. See DOOR STANCHION OUTER COVER .
- Raise door glass to midway position.
- Remove clip attaching door glass from window regulator guide.
- Remove door glass from window regulator guide.
- Remove door glass "up" stop.
- Remove door inner belt weather-strip.

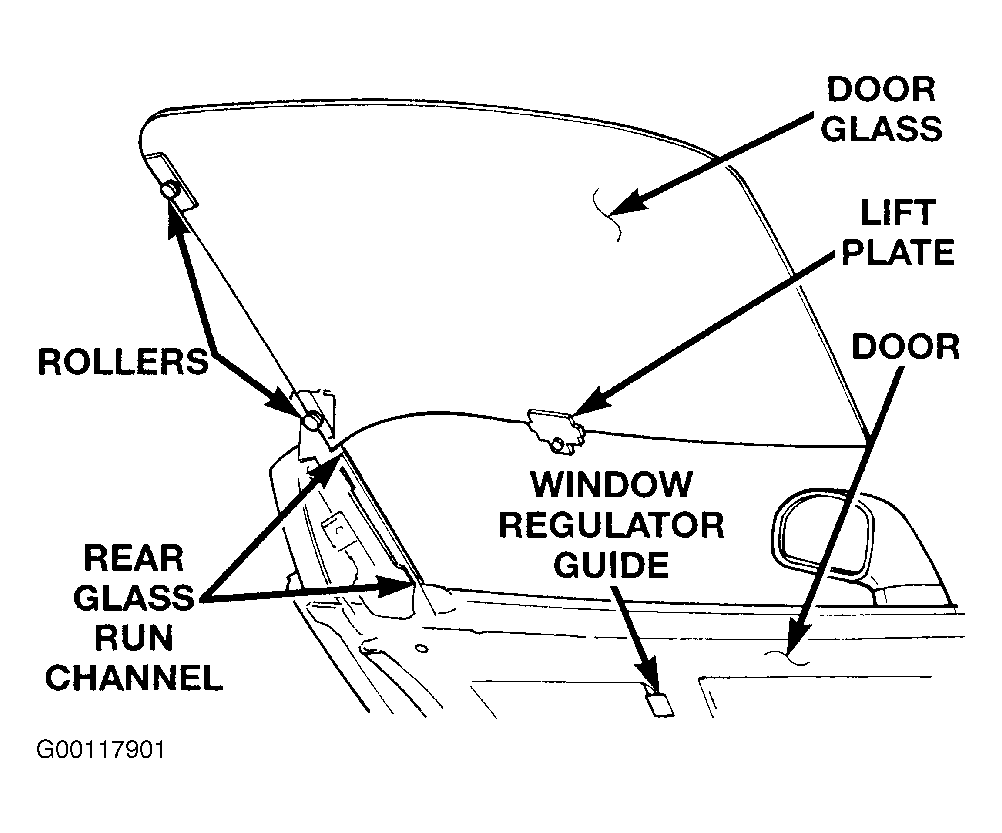

- Lift glass upward and out of opening in top of door. See Fig 1.
- Remove door glass from vehicle.
