NTC-13A: Checking Engine Mechanical Systems

NOTE: Perform Test NTC-1A Or NTC-4A Before Proceeding

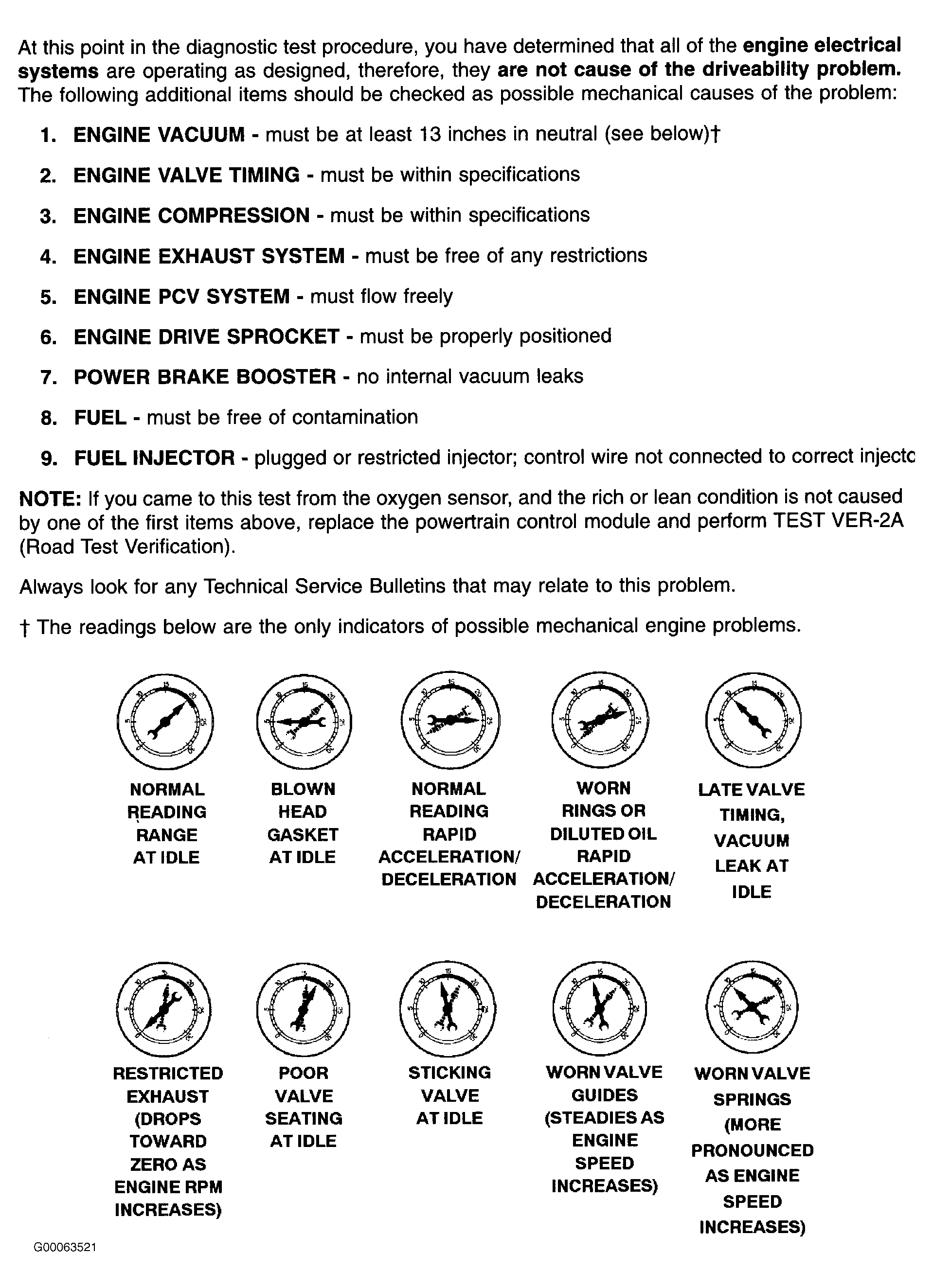

Fig 1: NTC-13A: Checking Engine Mechanical Systems

G00063521

Courtesy of DAIMLERCHRYSLER CORPORATION
