Removal & Installation

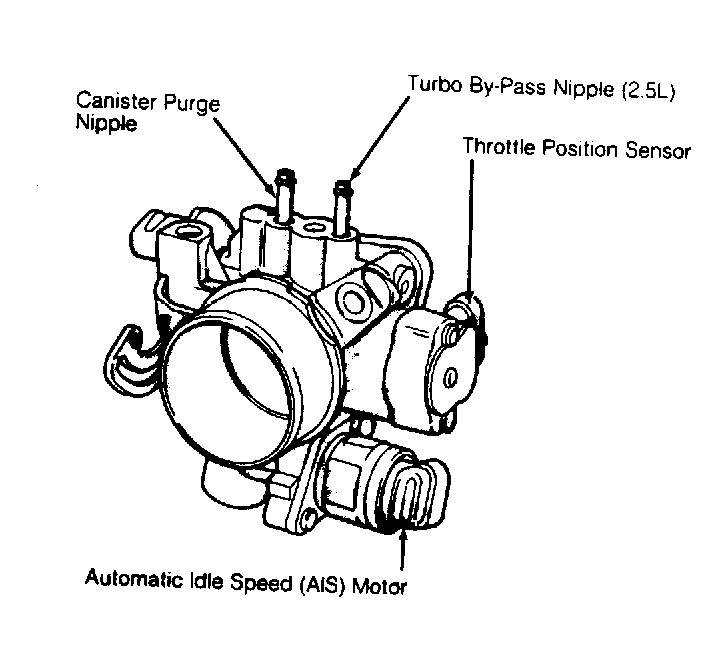

Disconnect negative battery cable and throttle body wiring connector. Remove 2 screws mounting throttle position sensor to throttle body. Remove throttle position sensor from throttle shaft. To install, remove removal procedure. See Figure .
