Engine Compartment

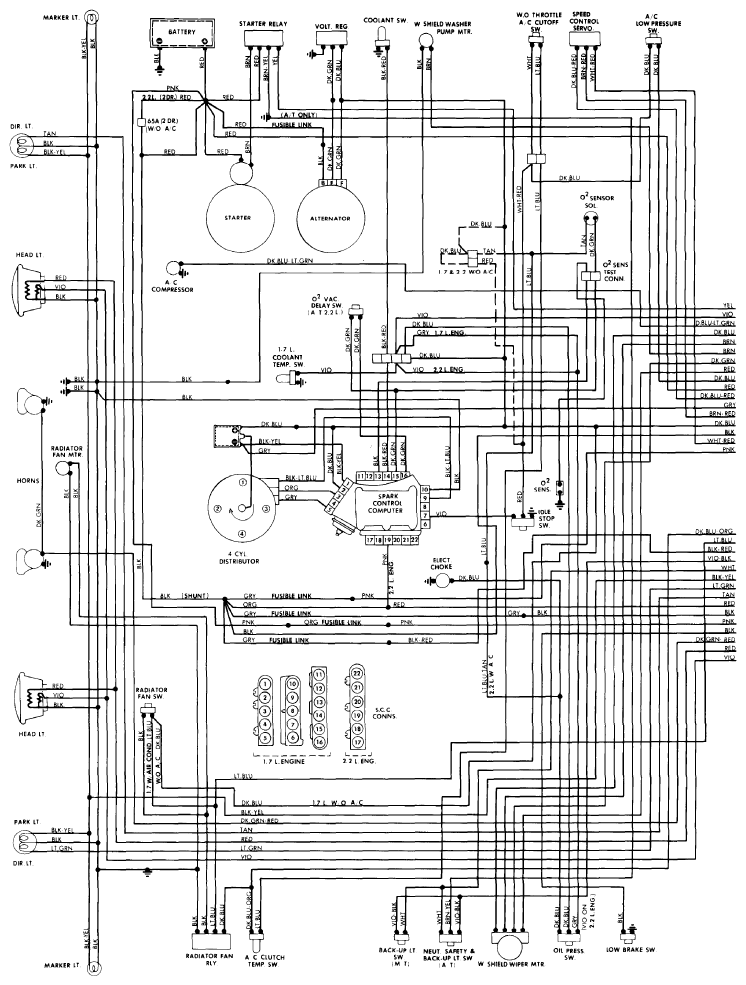

Fig 1: Wiring Diagrams - Engine Compartment

G09308587

Courtesy of CHRYSLER GROUP, LLC
