Wiper/Cruise Control Switch & Lever: Installation

1. Connect electrical connector to wiper switch. Connect cruise control connector, if equipped. Install wiper switch by snapping it into switch housing. Install upper and lower steering column cover panels.
2. Install upper and lower steering column cover panel screws. Tighten upper and lower steering column cover panel screws to 2.5 N.m (22 INCH lbs.). Connect negative battery cable.Fig 1

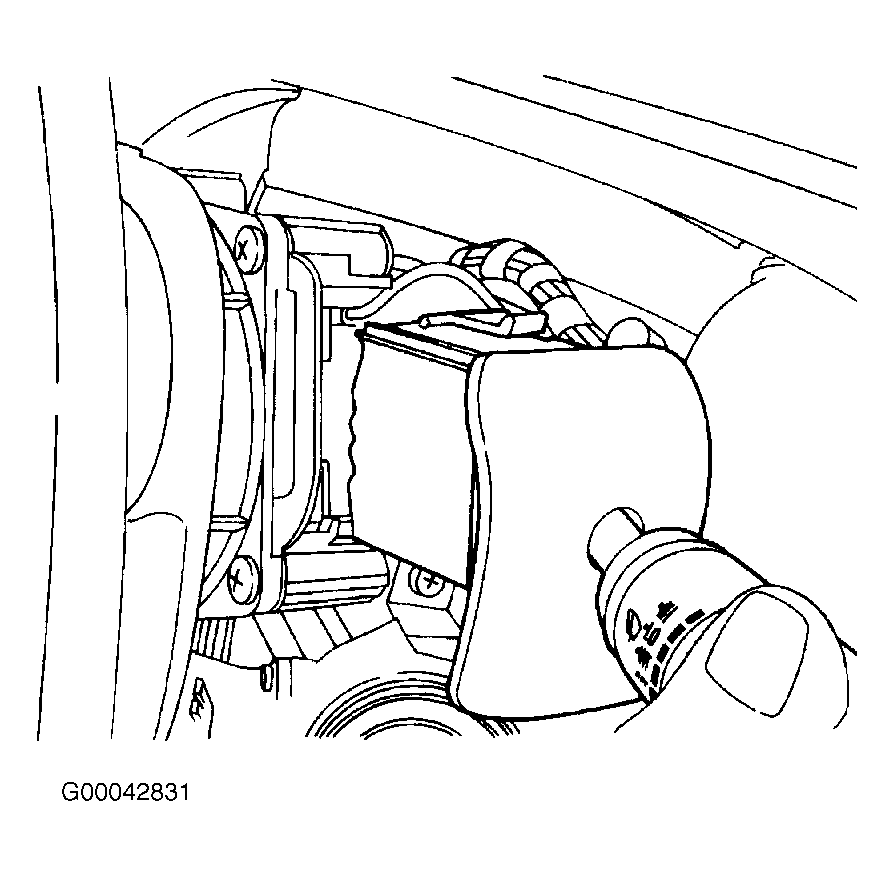

Fig 1: Installing Wiper Switch

Courtesy of DAEWOO MOTOR AMERICA, INC.
