DTC P0533: A/C Pressure Sensor High
DTC P0533: A/C Pressure Sensor High

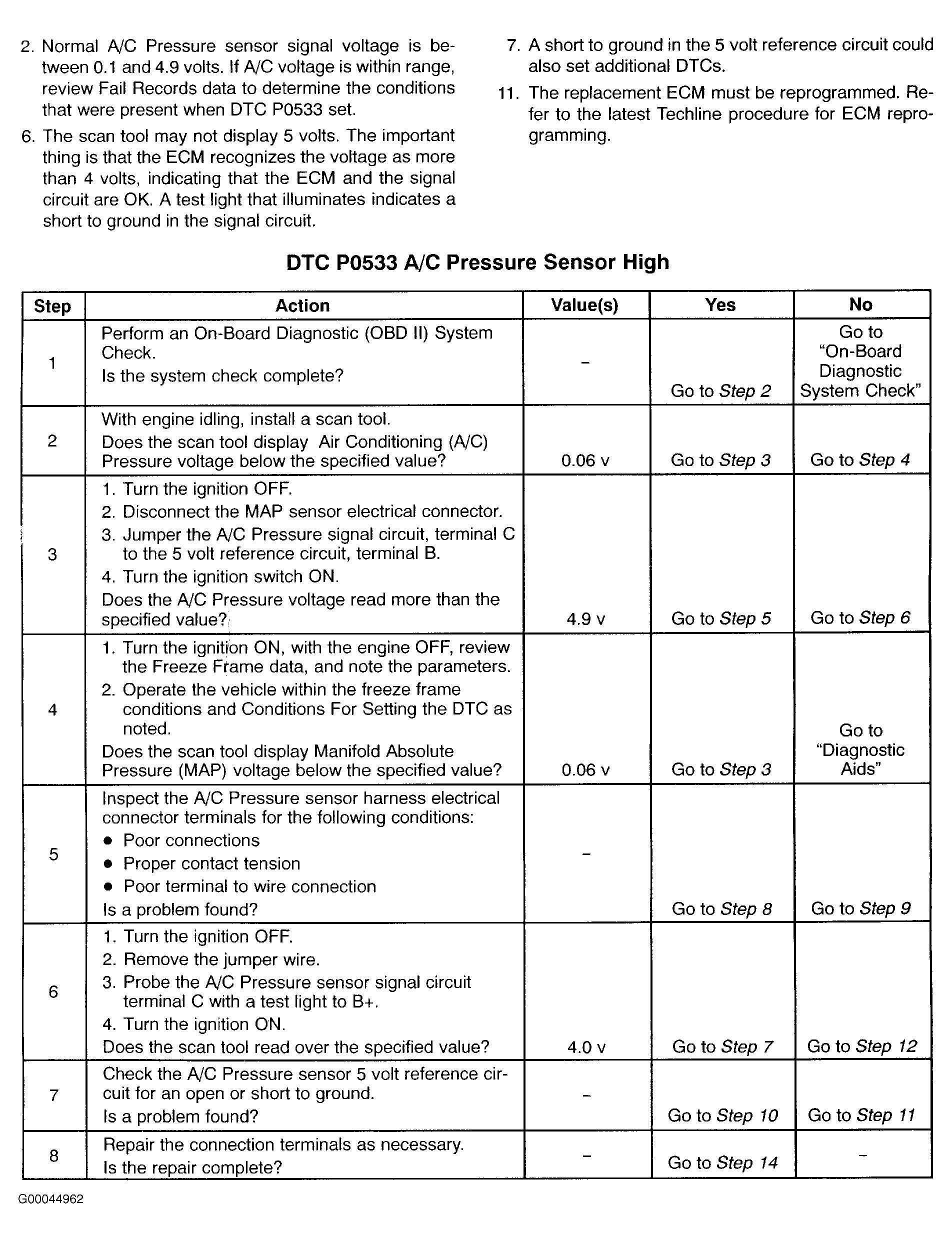

Fig 1: DTC P0533: A/C Pressure Sensor High (1 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

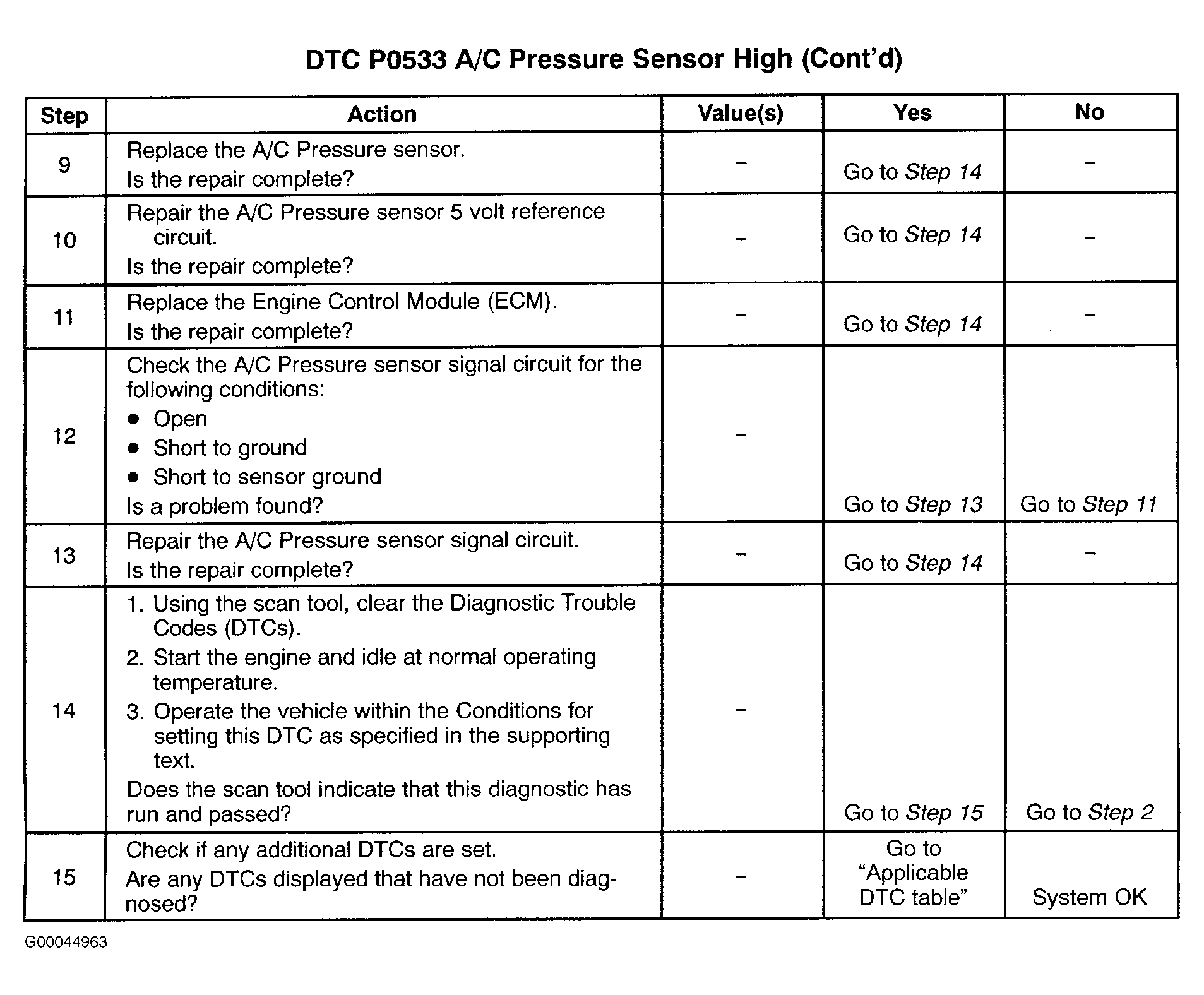

Fig 2: DTC P0533: A/C Pressure Sensor High (2 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

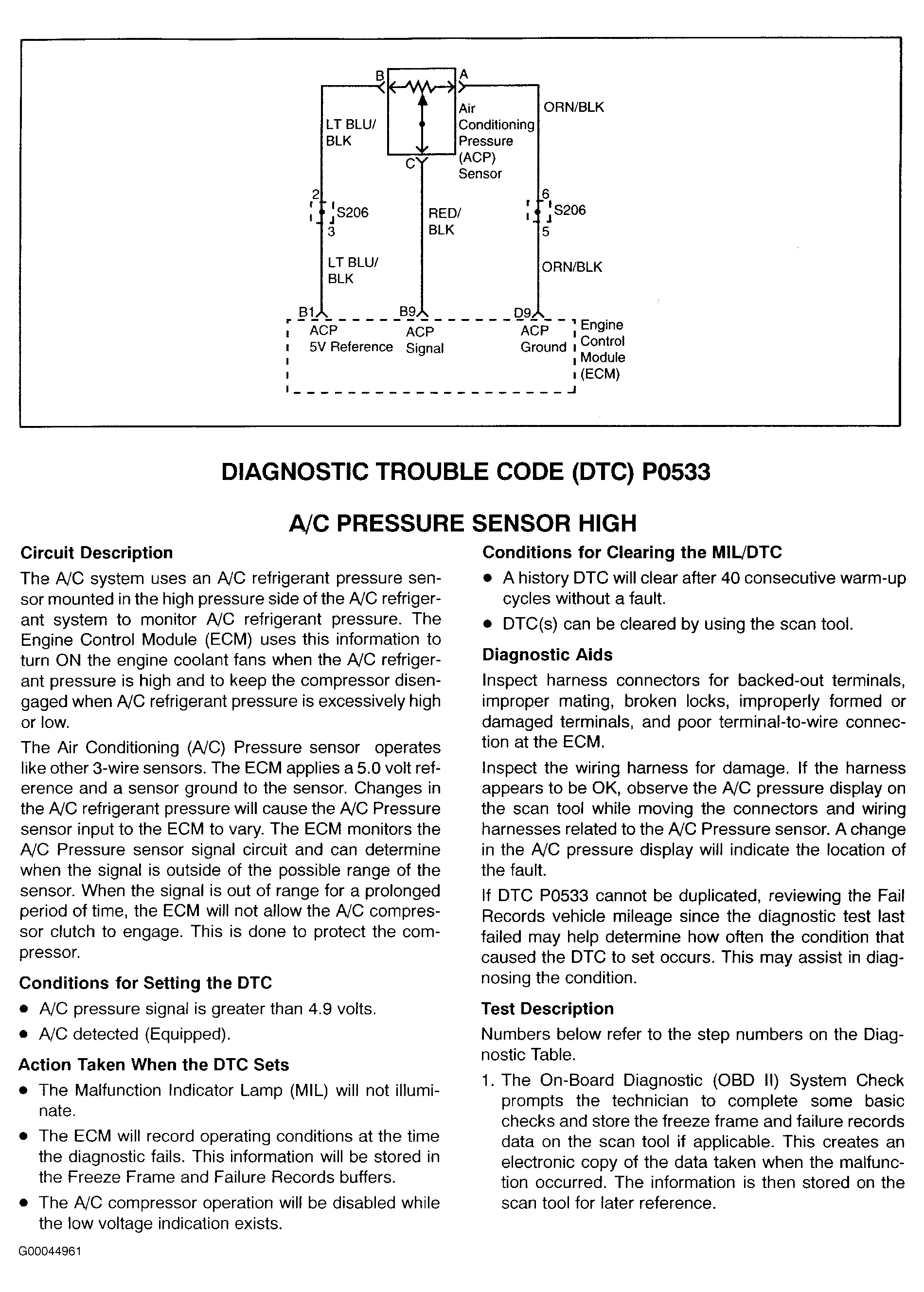

Fig 3: DTC P0533: A/C Pressure Sensor High (3 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
