ECM Output Diagnosis

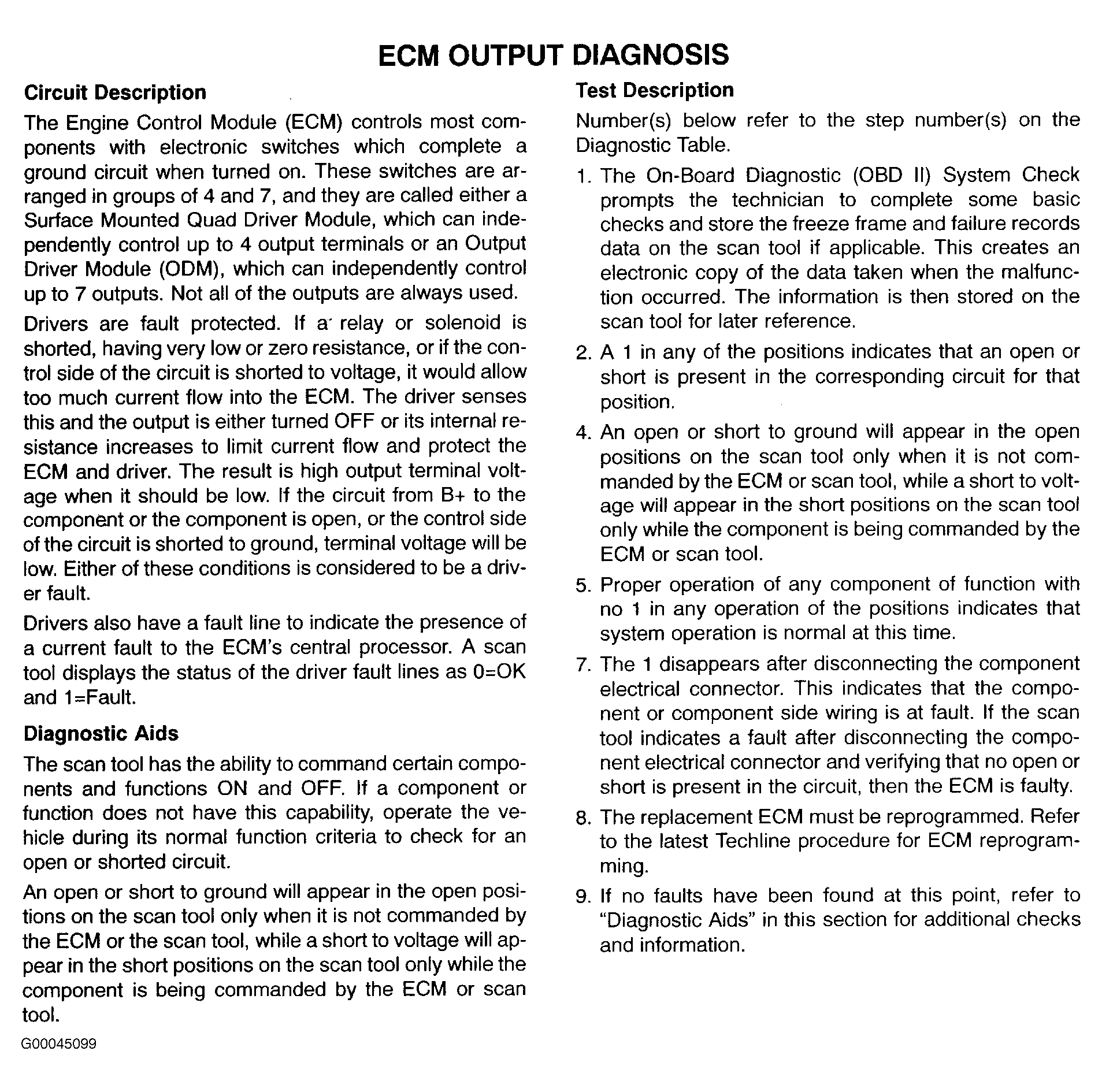

Fig 1: ECM Output Diagnosis (1 Of 2)

G00045099

Courtesy of DAEWOO MOTOR AMERICA, INC.

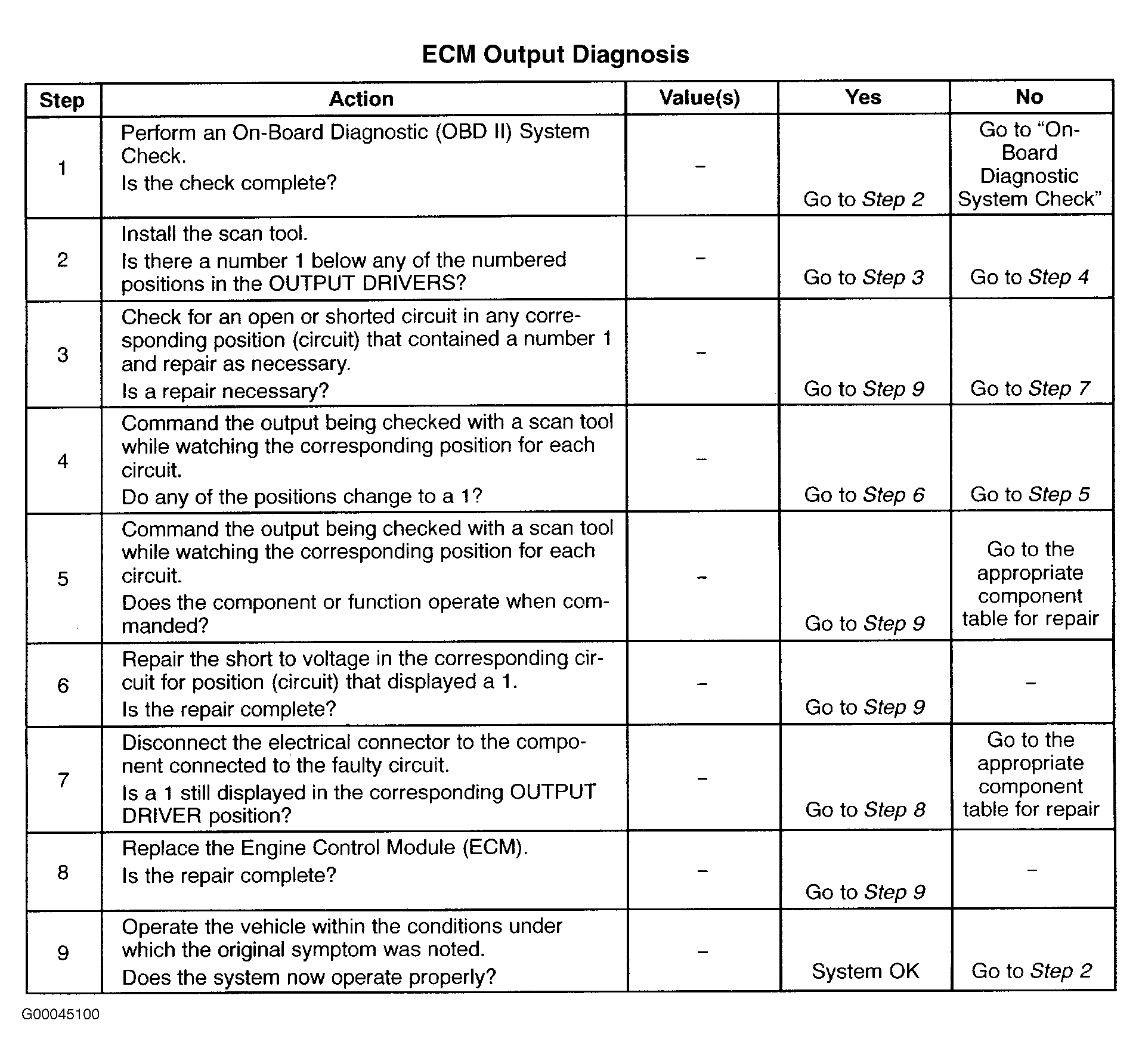

Fig 2: ECM Output Diagnosis (2 Of 2)

G00045100

Courtesy of DAEWOO MOTOR AMERICA, INC.
