Wiring Diagrams: Notes

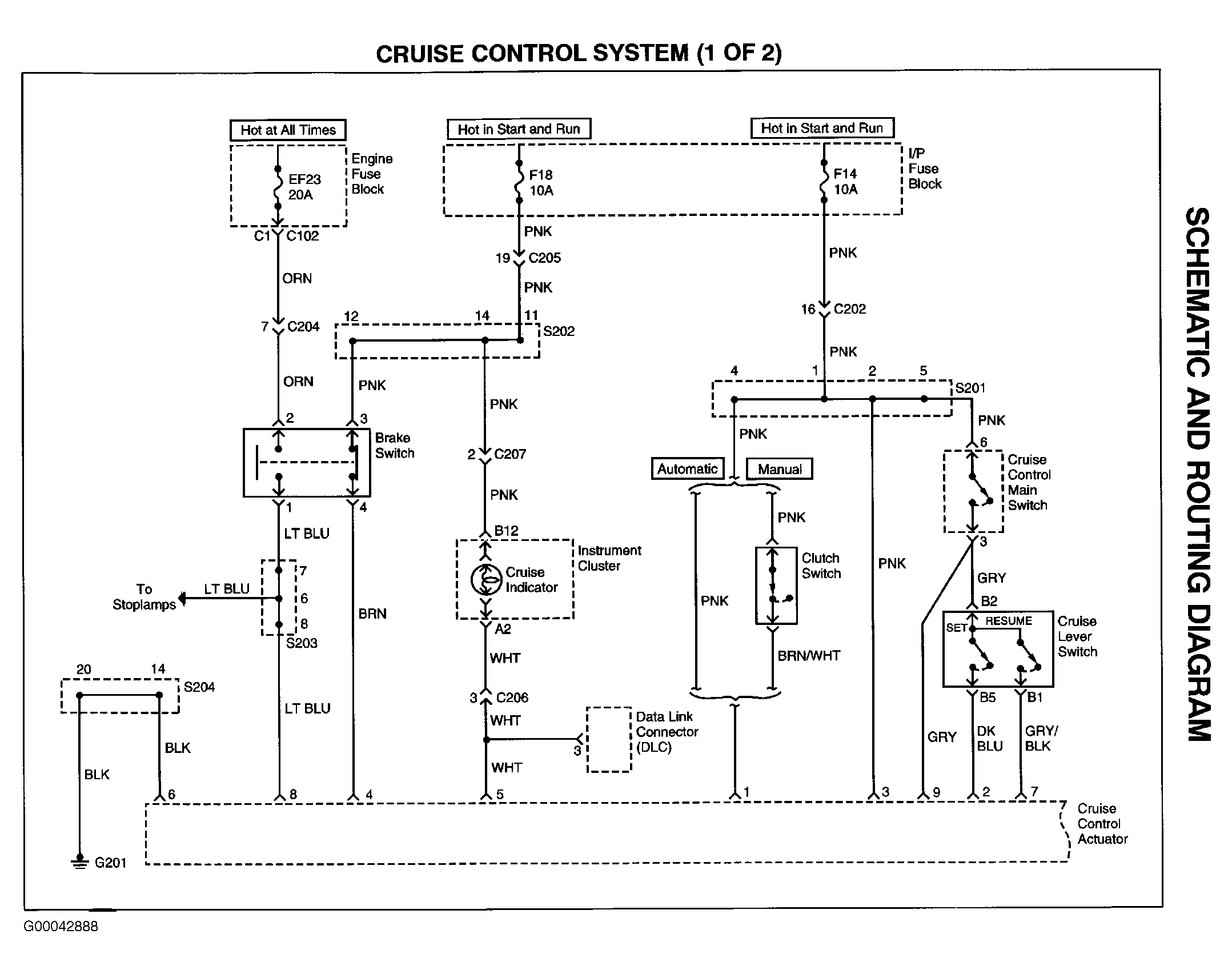

Fig 1: Cruise Control Systems Wiring Diagram (1 Of 2)
G00042888Courtesy of DAEWOO MOTOR AMERICA, INC.

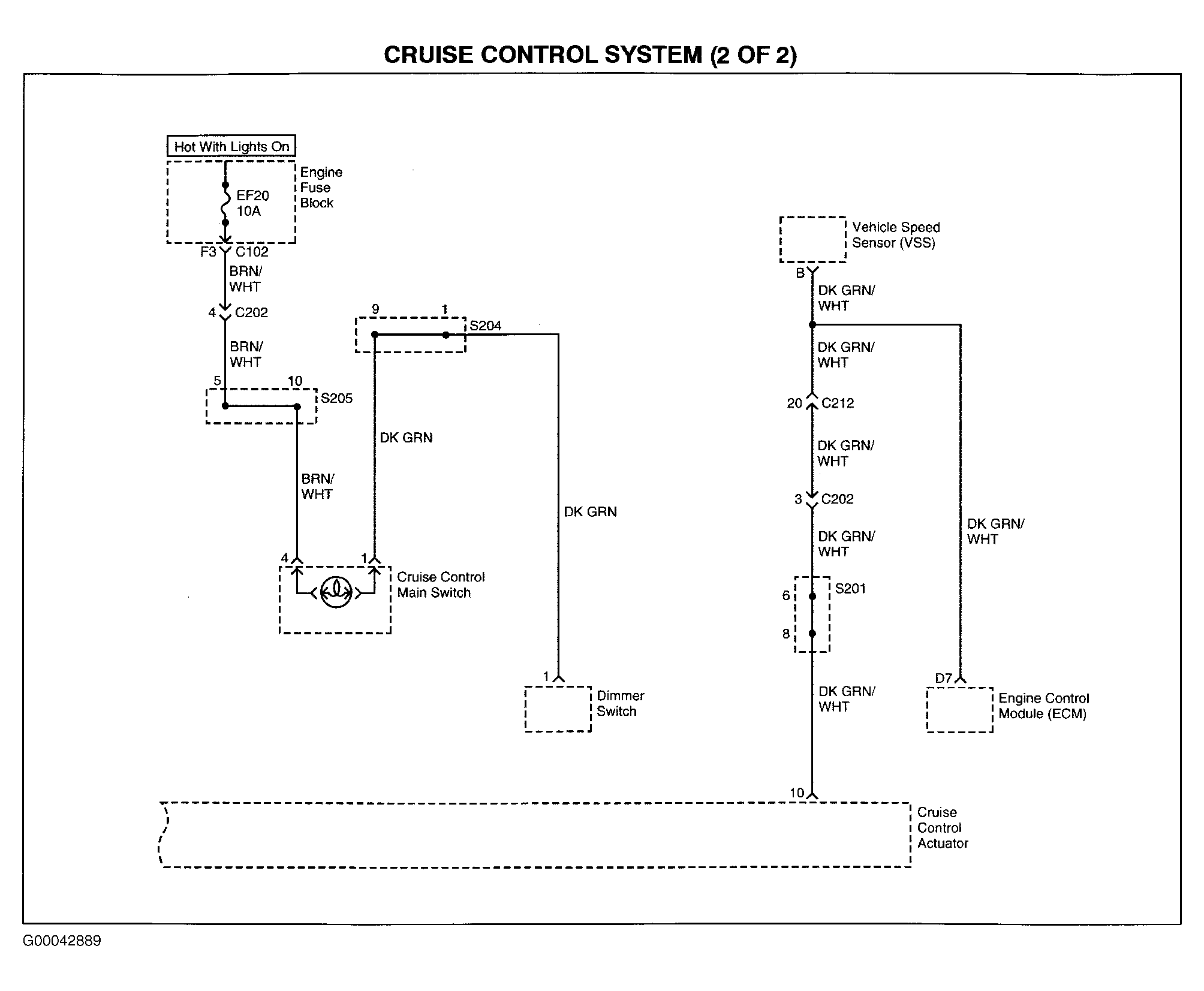

Fig 2: Cruise Control Systems Wiring Diagram (2 Of 2)
G00042889Courtesy of DAEWOO MOTOR AMERICA, INC.
