Pipe, Exhaust CROSSUNDER: Installation: Installation

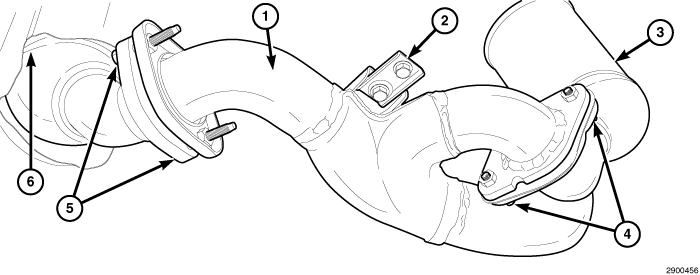

Fig 1: Cross-Under Support Bolts, Front Flange Nuts & Rear Flange Bolts

Courtesy of CHRYSLER GROUP, LLC

1. Position new gaskets onto the catalytic converter flanges.
2. Position the cross-under pipe (1) into its position between the catalytic converters.
3. Install the front flange mounting nuts (4). Tighten nuts to 28 Nm (250 in.-lbs.).
4. Install the rear flange bolts (5). Tighten bolts to 30 N.m (22 ft. lbs.).
5. Install the cross-under support (2) bolts. Tighten nuts to 28 Nm (250 in.-lbs.).

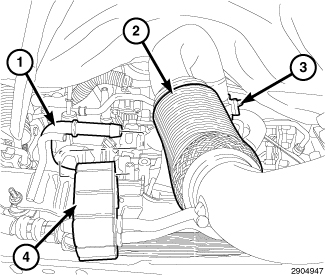

   Fig 2: Cross-Under Pipe

   Courtesy of CHRYSLER GROUP, LLC
6. Install the muffler/resonator pipe (2) onto the cross-under pipe (4). Do not tighten the pipe clamp.
7. Install the half shaft. Refer to INSTALLATION .

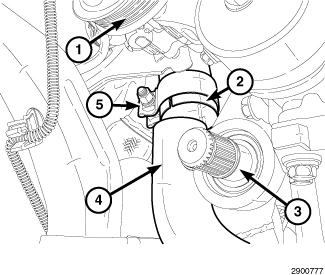

   Fig 3: Front Muffler/Resonator Pipe Grommet

   Courtesy of CHRYSLER GROUP, LLC
8. Install the front pipe grommet (4).
9. Check for clearance of the exhaust to body.
10. Tighten the muffler/resonator pipe clamp (3) to 55 N.m (40 ft. lbs.).
