Module, Vehicle System Interface: Installation

WARNING: This page is about a different car, the 2017 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

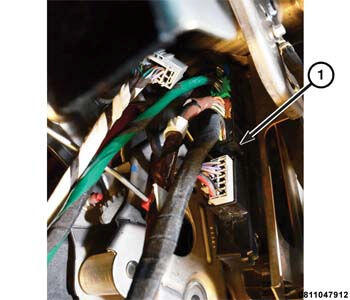

  1. Snap the Vehicle System Interface Module (VSIM) into the module bracket.
    GC0162901Courtesy of CHRYSLER GROUP, LLC
  2. Connect the wiring harness connectors to the VSIM.
  3. Install the kneeblocker.
  4. Connect the negative battery cable.
