Module, Powertrain Control: Installation: Diesel

WARNING: This page is about a different car, the 2017 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

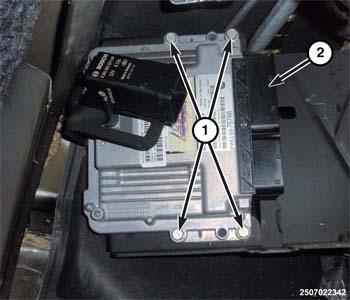

GC0158019Courtesy of CHRYSLER GROUP, LLC
  1. Check the pin connectors in Powertrain Control Module (PCM) and the wire harness connectors for corrosion or damage. Also check the pin heights in the connectors. Pin heights should all be the same. Repair as necessary before installing harness connectors.
  2. Install the PCM (2) and securely tighten the bolts (1).
    GC0158082Courtesy of CHRYSLER GROUP, LLC
  3. Connect the glow plug module wire harness connector (2).

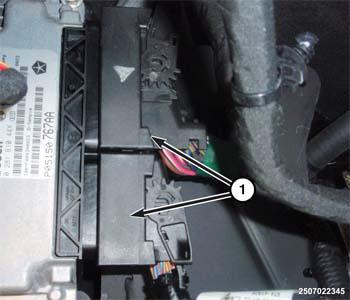

    GC0158192Courtesy of CHRYSLER GROUP, LLC
  4. Connect the PCM wire harness connector (1).

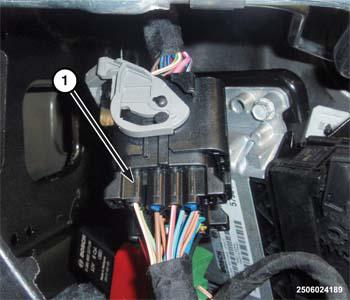

    GC0158053Courtesy of CHRYSLER GROUP, LLC
  5. Connect the engine wire harness connector (1).
  6. Install the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, INSTALLATION .
  7. Install the right front tire and wheel assembly.
  8. Remove the support and lower the vehicle.
  9. Connect the negative battery cable.
  10. Use a diagnostic scan tool to reprogram new PCM with vehicles original Vehicle Identification Number (VIN) and original vehicle mileage. Refer to MODULE, POWERTRAIN CONTROL, MODULE PROGRAMMING .
