Module, Power Sunroof: Installation

WARNING: This page is about a different car, the 2017 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Do not attempt to move or reposition the sunroof glass panel or drive cables with the sunroof motor and module unit removed. Damage to the vehicle, to the sunroof or personal injuries may result.

NOTE:

The Sunroof Initialization and Obstacle Detection Calibration procedure must be performed anytime this component is removed and installed or reinstalled.

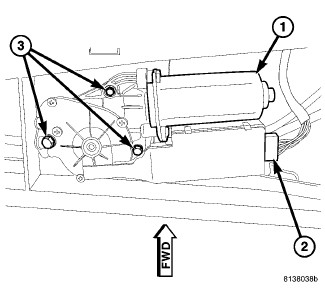

GC0083500Courtesy of CHRYSLER GROUP, LLC
  1. Position the power sunroof motor (1) in the vehicle.
  2. Install the motor retaining screws (3). Tighten the screws to 4 N.m (35 in. lbs.).
  3. Connect the motor electrical connector (2).
  4. Partially install the vehicle headliner and connect all remaining sunroof electrical connectors. Refer to HEADLINER, INSTALLATION .
  5. Connect the battery negative cable.
  6. Perform the sunroof initialization and obstacle detection calibration. Refer to MOTOR, SUNROOF, STANDARD PROCEDURE .
  7. Complete the vehicle headliner installation. Refer to HEADLINER, INSTALLATION .
