Module, Glow Plug, 3.0L Diesel: Removal

WARNING: This page is about a different car, the 2017 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  3. Remove the right front tire and wheel assembly.
  4. Remove the wheelhouse splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL .

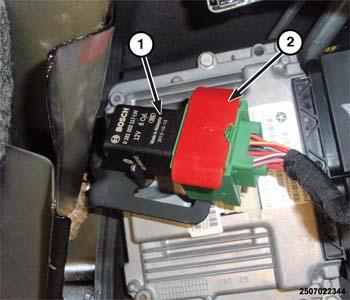

    GC0158082Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the glow plug module wire harness connector (2).

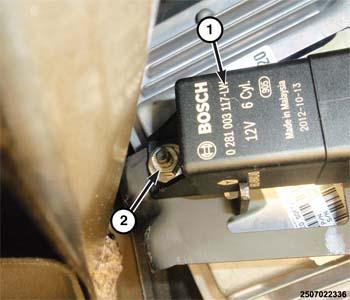

    GC0158098Courtesy of CHRYSLER GROUP, LLC
  6. Remove the nut (2) and the glow plug module (1).
