Module, Electronic Shift: Removal

WARNING: This page is about a different car, the 2017 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. If equipped, remove the center console bezel. Refer to BEZEL, CENTER CONSOLE, REMOVAL .

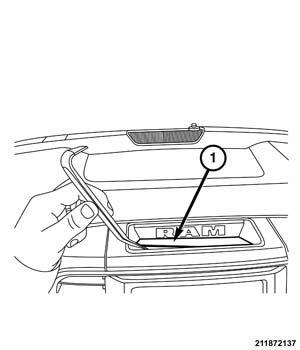

    GC0154660Courtesy of CHRYSLER GROUP, LLC
  3. Remove the pocket insert from above the radio (1).
    GC0154616Courtesy of CHRYSLER GROUP, LLC
  4. Remove two screws (1) that secure the bezel above the radio.

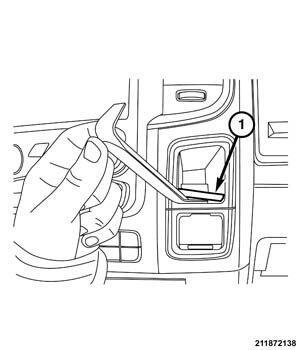

    GC0154371Courtesy of CHRYSLER GROUP, LLC
  5. Remove the pocket insert (1) from above the power outlet.
  6. Remove one screw that secures the bezel.

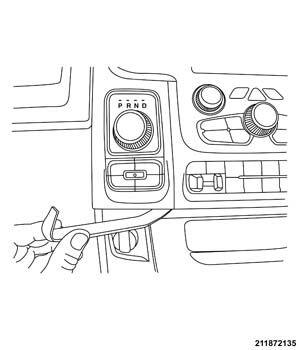

    GC0154445Courtesy of CHRYSLER GROUP, LLC
  7. Remove the center stack bezel with a trim stick.
  8. Disconnect all the electrical connectors from the back of the center stack.
    GC0154610Courtesy of CHRYSLER GROUP, LLC
  9. Remove the four screws (1) that secure the electronic shifter to the backside of the bezel.
