Module, Electronic Shift: Installation

WARNING: This page is about a different car, the 2017 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

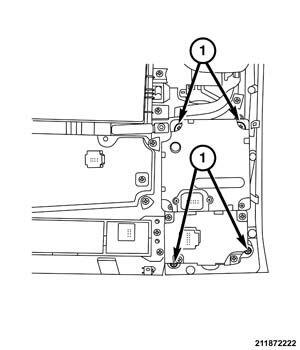

GC0154610Courtesy of CHRYSLER GROUP, LLC
  1. Install the electronic shifter into the center stack bezel.
  2. Install and tighten four screws (1) for the shifter.
  3. Connect all electrical connectors to the back of the center stack.

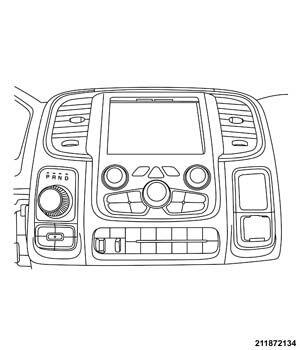

    GC0154532Courtesy of CHRYSLER GROUP, LLC
  4. Install the center stack bezel onto the instrument panel.
  5. Install and tighten one screw above power outlet.
  6. Install the pocket insert above power outlet.

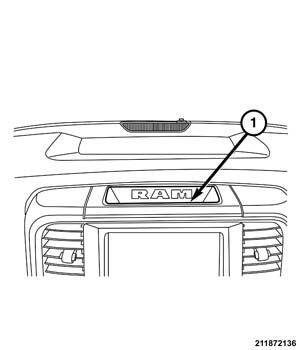

    GC0154616Courtesy of CHRYSLER GROUP, LLC
  7. Install and tighten two screws (1) above the radio.
  8. Install the pocket insert above the radio (1).
  9. If equipped, install the center console bezel

    Refer to BEZEL, CENTER CONSOLE, INSTALLATION .

  10. Connect the negative battery cable.
  11. Verify operation of the shifter.
