Module, Anti-Lock Brake System: Description

WARNING: This page is about a different car, the 2017 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

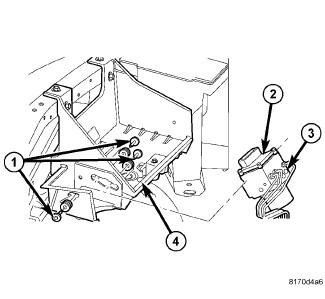

GC0083406Courtesy of CHRYSLER GROUP, LLC

The Antilock Brake Module (ABM) (2) is mounted to the Hydraulic Control Unit (HCU) (3) and operates the ABS system.
