Control Unit, Def Heater: Removal

WARNING: This page is about a different car, the 2017 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

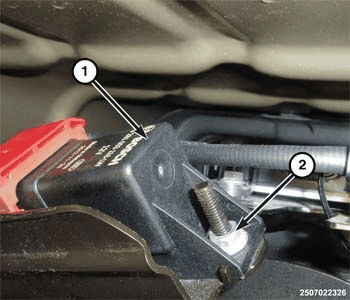

    GC0158127Courtesy of CHRYSLER GROUP, LLC
  3. Remove the nut (2) and the Diesel Exhaust Fluid (DEF) Heater Control Unit (HCU) (1) from bracket.

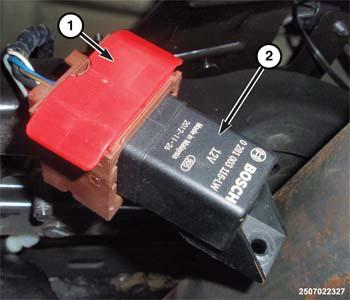

    GC0158037Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the DEF HCU wire harness connector (1) and remove the DEF HCU (2).
