Cable, Shift Interlock: Installation: Installation

Verify that ignition key is in ACC position.

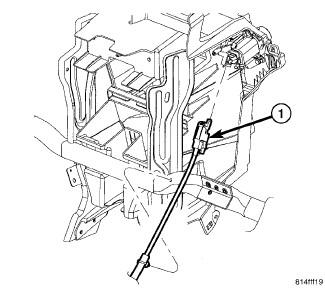

Fig 1: Identifying Interlock Cable AT Ignition Cylinder
Courtesy of CHRYSLER LLC

1 - INTERLOCK CABLE
Route the cable into the vehicle.
Install the shift interlock cable (1) to the ignition module.
Install the cable clips to the center HVAC ducts.

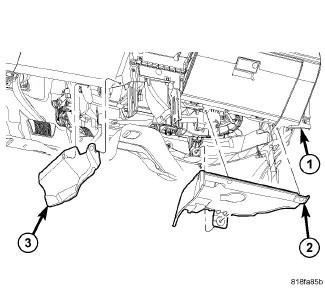

Fig 2: LT And RT LWR Instru. Panel Trim
Courtesy of CHRYSLER LLC
Install the lower silencing panel (3).
Install the knee blocker. Refer to KNEEBLOCKER, INSTALLATION .
Route shift interlock cable towards shift mechanism.

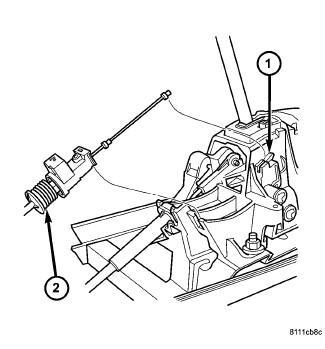

Fig 3: View Of BTSI Cable AT Mechanism
Courtesy of CHRYSLER LLC
Connect interlock cable housing (2) to shift mechanism.
Adjust interlock cable. Refer to ADJUSTMENTS for the appropriate automatic transmission.
Install the center console. Refer to HOUSING, SHIFTER, INSTALLATION .
