PEDAL, Accelerator: Removal: Removal

Fig 1: Adjuster Cable & Adjuster Motor
GC0079842Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Disconnect electrical connectors, if equipped with adjustable pedals remove the adjuster cable (1) at accelerator adjuster motor (2).

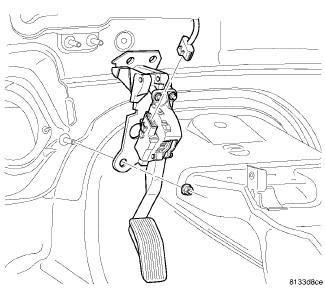

    Fig 2: Pedal Removal/Install
    GC0080453Courtesy of CHRYSLER LLC
  3. Remove 3 mounting nuts.
  4. Remove pedal assembly.
