U1149-Lost Communication With Multi-Function Switch: Notes

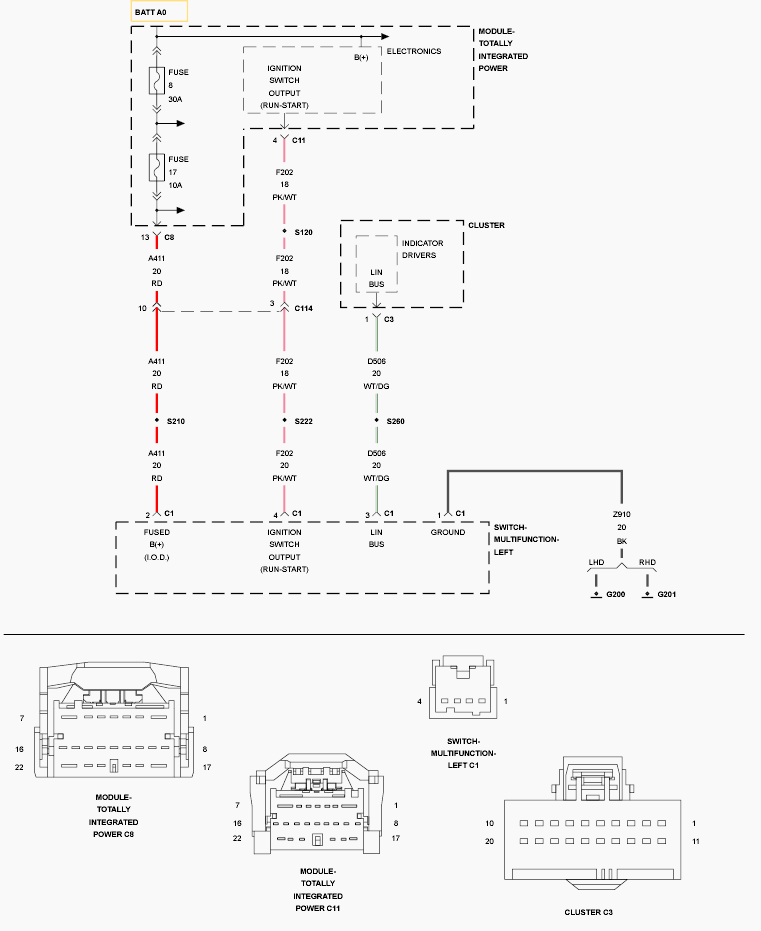

Fig 1: Multi-Function Switch Circuit

GC0124256

Courtesy of CHRYSLER LLC
