U113B-Lost Communication With Switch Bank Module: Notes

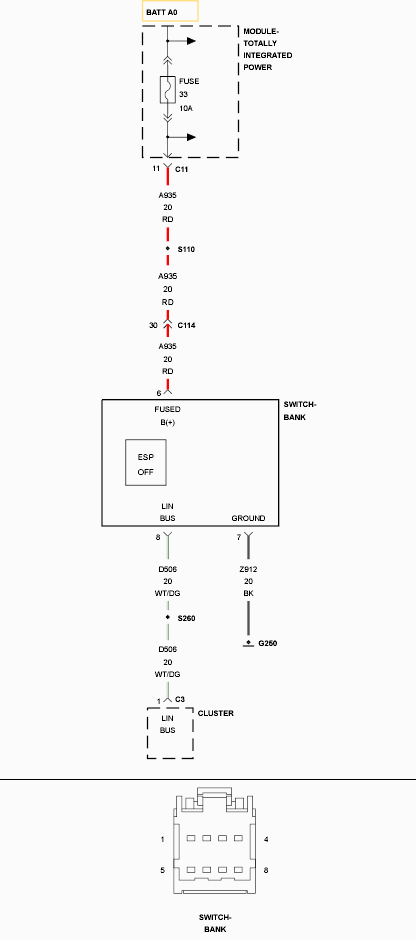

Fig 1: Switch Bank Module Circuit

GC0124252

Courtesy of CHRYSLER LLC
