U0161-Lost Communication With Compass Module: Notes

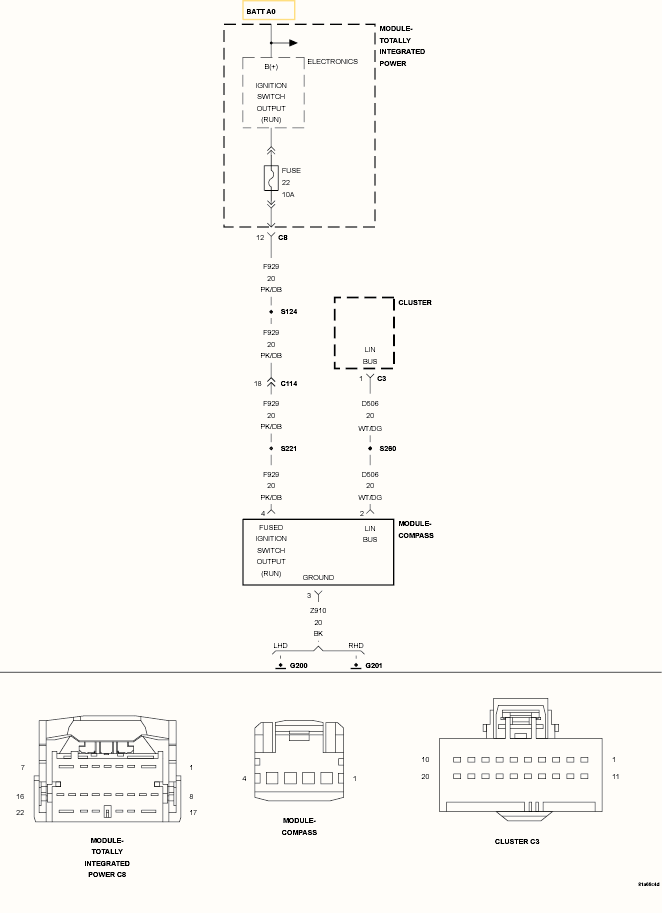

Fig 1: Compass Module Circuit

GC0124249

Courtesy of CHRYSLER LLC
