B1825-Trunk Release Switch Input Circuit/Performance: Notes

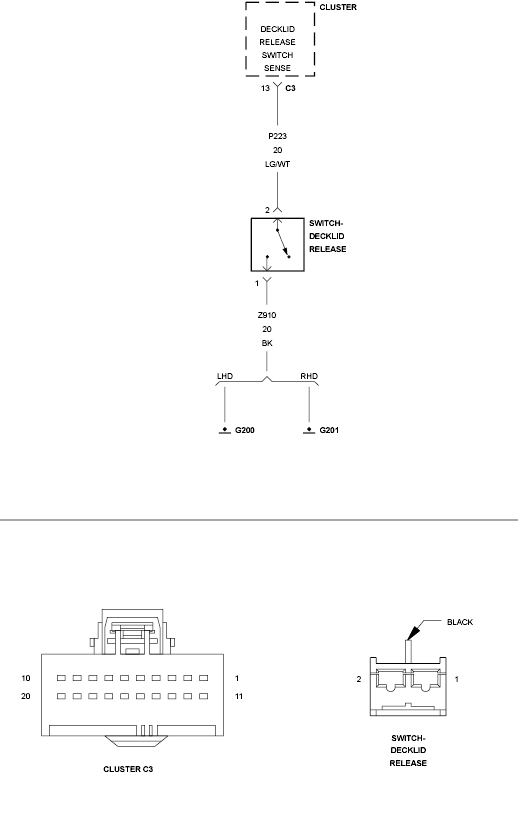

Fig 1: Trunk Release Switch Input Circuit

GC0124231

Courtesy of CHRYSLER LLC
