B1800-Driver Door Lock/Unlock Switch Circuit Performance: Notes

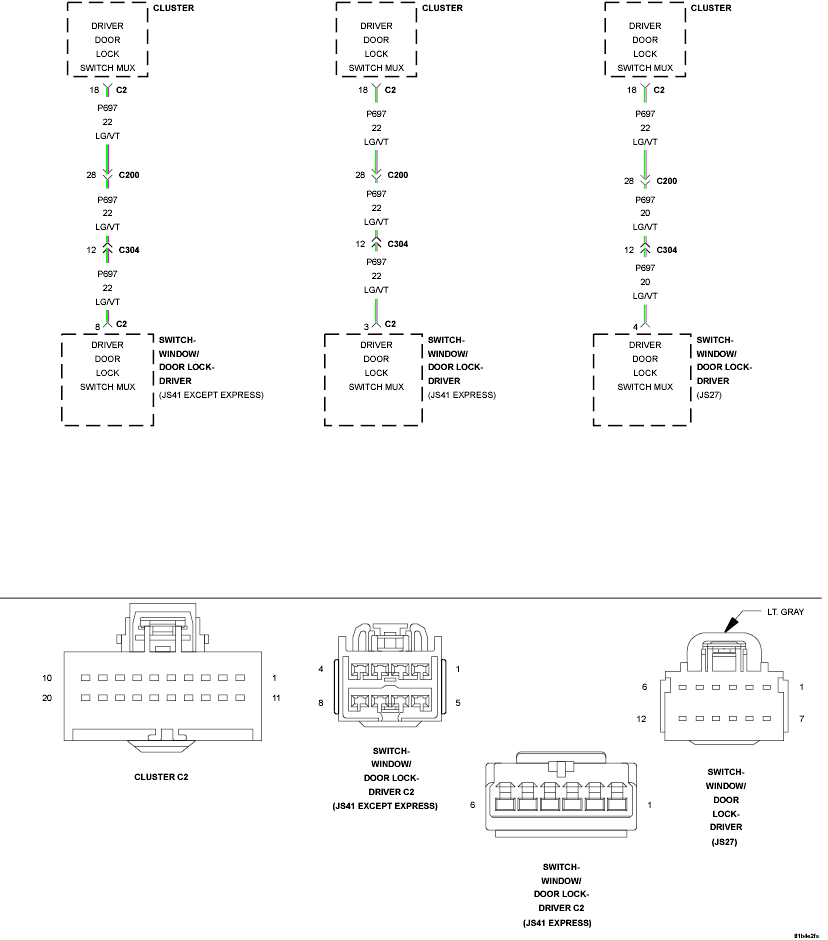

Fig 1: Driver Door Lock/Unlock Switch Circuit

GC0124222

Courtesy of CHRYSLER LLC
