B161E-Reading Lamp Control Circuit: Notes

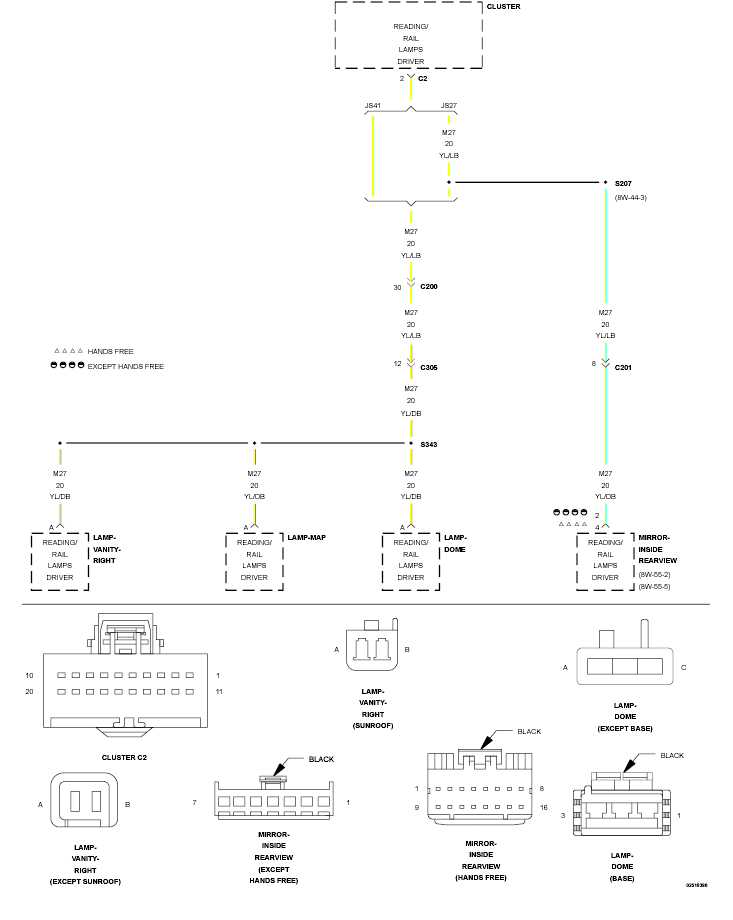

Fig 1: Reading Lamp Control Circuit

GC0124219

Courtesy of CHRYSLER LLC
