B1427-Remote Radio Switch Input Circuit High: Notes

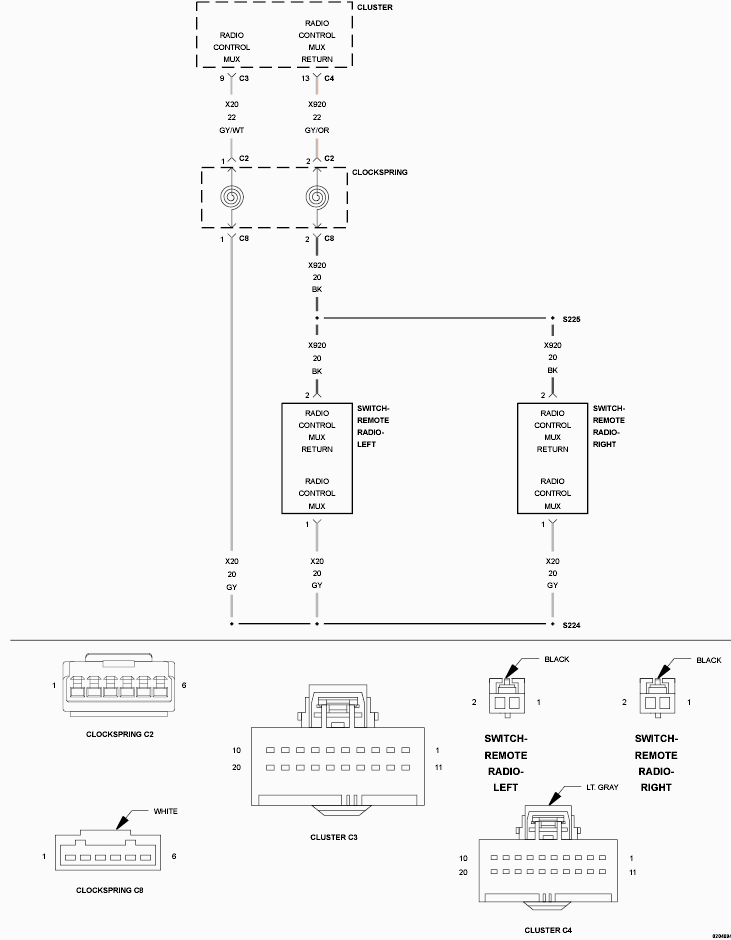

Fig 1: Remote Radio Switch Input Circuit

GC0124208

Courtesy of CHRYSLER LLC
