Engine Assembly

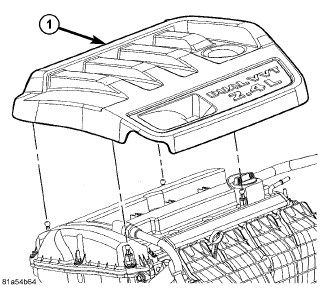

Fig 1: ENGINE COVER-2.4L

Courtesy of CHRYSLER LLC

Remove engine cover (1).

Fig 2: Coil Connector
Courtesy of CHRYSLER LLC
Perform fuel pressure release procedure, then disconnect and remove fuel line (3). Refer to Fuel System/Fuel Delivery - Standard Procedure .
Remove make-up air hose (2).

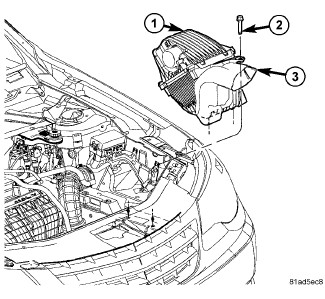

Fig 3: Air Cleaner Housing Assembly
Courtesy of CHRYSLER LLC
Remove air cleaner housing assembly (1). See Engine/Air Intake System/BODY, Air Cleaner - Removal .

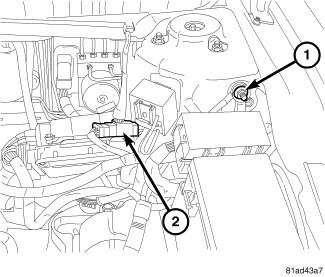

Fig 4: BATTERY CABLE
Courtesy of CHRYSLER LLC
Disconnect negative battery cable (1).
Discharge air conditioning system, if equipped (refer to STANDARD PROCEDURE ).
Drain cooling system (refer to STANDARD PROCEDURE ).

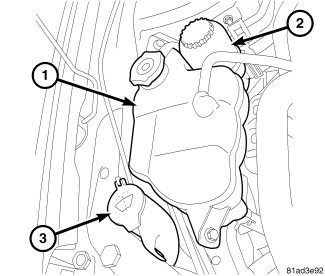

Fig 5: COOLANT RESERVOIR
Courtesy of CHRYSLER LLC
Remove coolant reservoir (1).
Remove power steering reservoir (2).

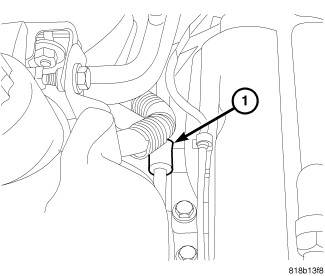

Fig 6: Power Steering Line Support
Courtesy of CHRYSLER LLC
Remove power steering line support at engine mount (1).
Remove power steering pump and set aside.

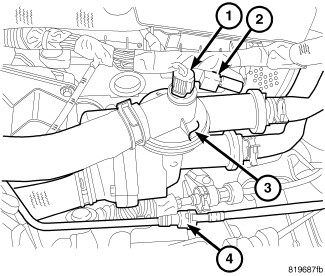

Fig 7: Coolant Adapter
Courtesy of CHRYSLER LLC
Remove coolant hoses from coolant adapter (3).
Disconnect coolant temperature sensor connector (1) and capacitor connector (2).

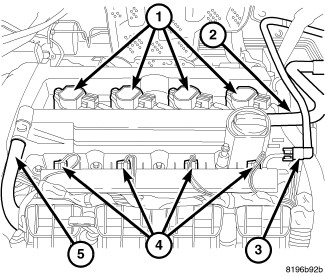

Fig 8: Coil Connector
Courtesy of CHRYSLER LLC
Disconnect coils (1), injectors (4), cam sensors, oil temperature sensor, and oil control valve electrical connectors and reposition harness.
Remove PCV hose (5) from valve cover.
Remove harness from intake (2).
Remove throttle body support bracket (1).
Remove vacuum lines from throttle body and intake manifold.
Disconnect electronic throttle control and manifold flow control valve electrical connectors.

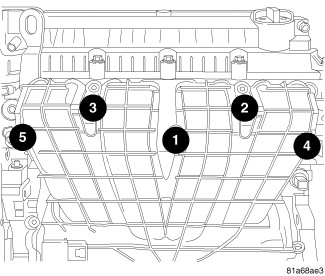

Fig 9: INTAKE TORQUE SEQUENCE
Courtesy of CHRYSLER LLC
Remove dipstick.
Remove intake bolts and remove intake.
Disconnect coolant temperature sensor at block, knock sensor, oil pressure sensor, generator, starter, block heater (if equipped), A/C compressor (if equipped), and block ground.
Remove accessory drive belt.

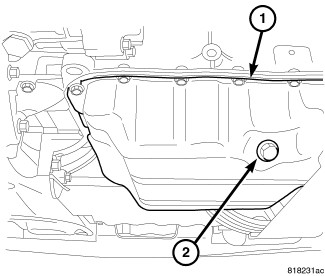

Fig 10: Oil Drain Plug
Courtesy of CHRYSLER LLC
Raise vehicle.
Remove front splash shield.
Drain oil (2).

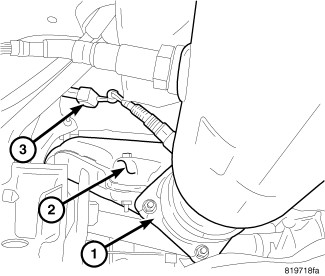

Fig 11: Catalytic Converter At Exhaust Manifold
Courtesy of CHRYSLER LLC
Remove exhaust pipe to exhaust manifold bolts (1).
Disconnect oxygen sensor connector (3).
Remove exhaust manifold heat shield (2).
Remove exhaust manifold.

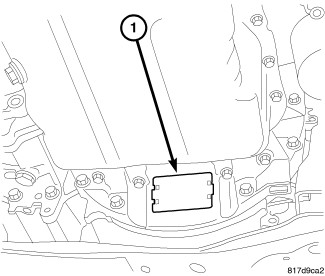

Fig 12: INSPECTION COVER
Courtesy of CHRYSLER LLC
Remove inspection cover (1) and mark torque converter to flywheel.

Fig 13: MODULAR CLUTCH TO FLEX PLATE BOLTS
Courtesy of CHRYSLER LLC
On vehicles equipped with an automatic transaxle, remove torque converter bolts (1).
On vehicles equipped with a manual transaxle, remove modular clutch bolts (1).
Remove lower bellhousing bolts (2).

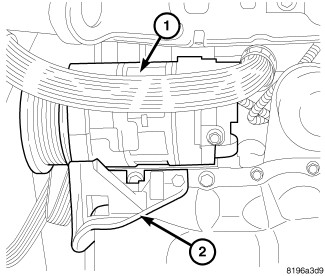

Fig 14: A/C COMPRESSOR
Courtesy of CHRYSLER LLC
Remove A/C compressor (1) from engine and set aside.
Remove generator and lower idler pulley.

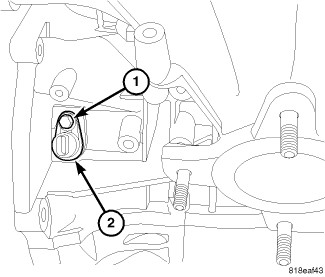

Fig 15: CRANKSHAFT POSITION SENSOR
Courtesy of CHRYSLER LLC
Disconnect CKP sensor (2) electrical connector.

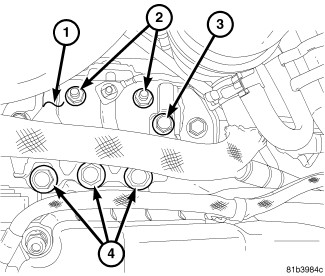

Fig 16: Right Engine Mount Bracket & Retaining Bolts
Courtesy of CHRYSLER LLC
Remove right engine mount bracket retaining bolts (4).
Remove power steering hose hold down (3).
Remove retaining nuts (2) and position mount bracket (1) aside.

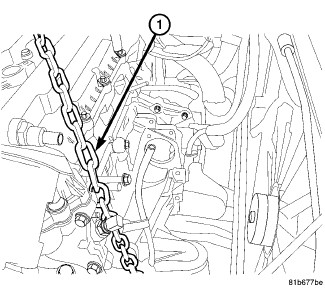

Fig 17: LIFT CHAIN
Courtesy of CHRYSLER LLC
Remove intake oil control valve to prevent damage.
Install engine lift chain to rear lift bracket and bolt to cylinder head (1) in the front.
Hoist engine from vehicle.
Separate engine and transmission.
