Sensor, Coolant Temperature: Installation: 3.3L/3.8L

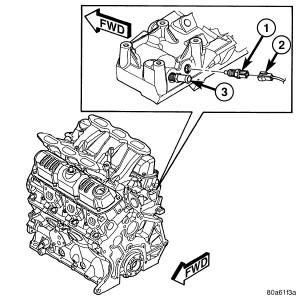

Fig 1: Engine Coolant Temperature Sensor

Courtesy of CHRYSLER LLC

1 - ENGINE COOLANT TEMPERATURE SENSOR

2 - CONNECTOR - ENGINE COOLANT SENSOR

3 - FITTING - HEATER SUPPLY

1. Install engine coolant temperature sensor. See Figure. Tighten sensor to 7 N.m (60 in. lbs.).
2. Connect electrical connector to sensor. See Figure.
3. Install ignition coil bracket and coil.
4. Install power steering reservoir. Refer to RESERVOIR, POWER STEERING PUMP .
5. Fill cooling system. Refer to FILLING .
