Diesel Engine

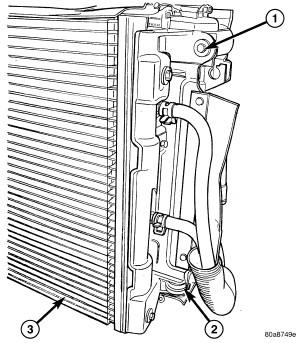

Fig 1: Radiator To A/C Condenser Mounting (Left Mount Shown; Right Similar)

Courtesy of CHRYSLER LLC

1 - SCREW - A/C CONDENSER SIDE BRACKET TO RADIATOR

2 - LOWER MOUNT

3 - A/C CONDENSER

Be sure the air seal is in position before radiator is installed. Slide radiator down into position. Seat the radiator with the rubber isolators into the mounting holes provided, with a 10 lbs. force.
Position air conditioning condenser onto the radiator lower mounts and install upper screws. Tighten fasteners to 5 N.m (45 in. lbs.).
Install the radiator upper and lower hoses.
Connect the coolant bypass hose.
Install radiator fans. Refer to FAN, COOLING .
Install the radiator upper crossmember support. Refer to CROSSMEMBER, RADIATOR, UPPER .
Fill the cooling system. Refer to FILLING .
Connect negative cable to battery.
