Diesel Engine

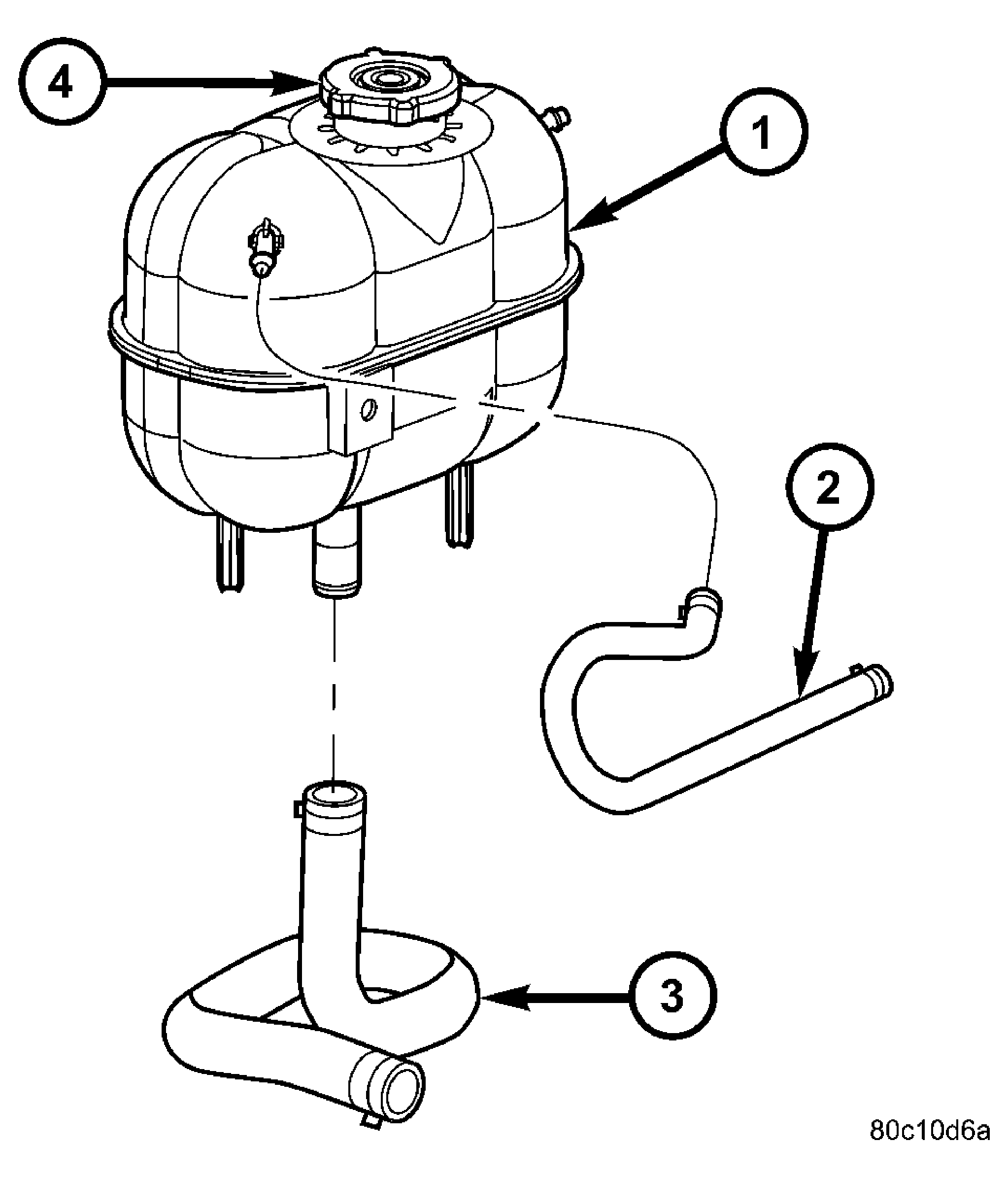

  1. Connect coolant hose at bottom of coolant recovery pressure container and install in mounting bracket. See Figure.

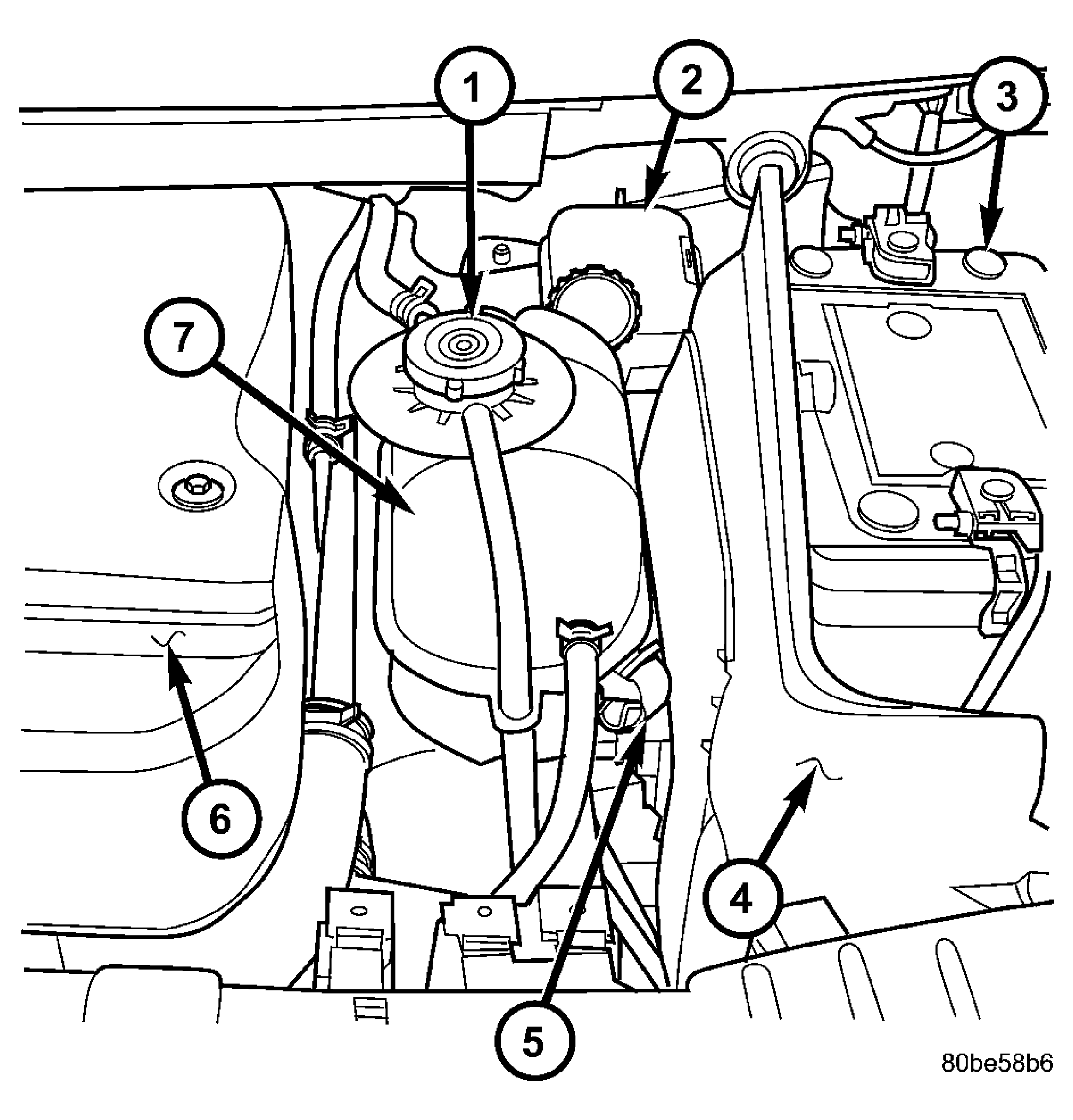

  2. Connect coolant recovery pressure container retaining clip. See Figure.
  3. Connect coolant bypass and overflow hoses to coolant recovery pressure container.
  4. Refill cooling system. (Refer to COOLING/ENGINE/COOLANT - STANDARD PROCEDURE)
