Brake Fluid Level Switch - 2 Way

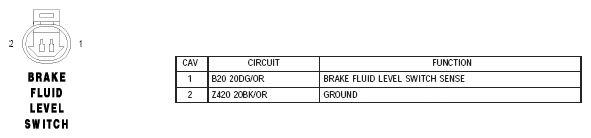

Fig 1: Identifying Connector Pinouts - Brake Fluid Level Switch - 2 Way

G04763115

Courtesy of DAIMLERCHRYSLER CORPORATION
