Power Seat System: Description

The power seat system on this model allows the driver to electrically adjust their seating positions in eight directions for optimum control and comfort, using the power seat switch located on the outboard seat cushion side shield. See Fig 1. The power seat system receives battery current through a 40 amp fuse in the Power Distribution Center (PDC) and a 20 amp circuit breaker in the junction block so that the power seats remain operational, regardless of the ignition switch position.

WARNING: SOME VEHICLES ARE EQUIPPED WITH SIDE AIRBAGS. BEFORE ATTEMPTING TO DIAGNOSE OR SERVICE ANY SEAT OR POWER SEAT SYSTEM COMPONENT YOU MUST FIRST DISCONNECT AND ISOLATE THE BATTERY NEGATIVE CABLE. THEN WAIT TWO MINUTES FOR THE SYSTEM CAPACITOR TO DISCHARGE BEFORE FURTHER SYSTEM SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO DO SO COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

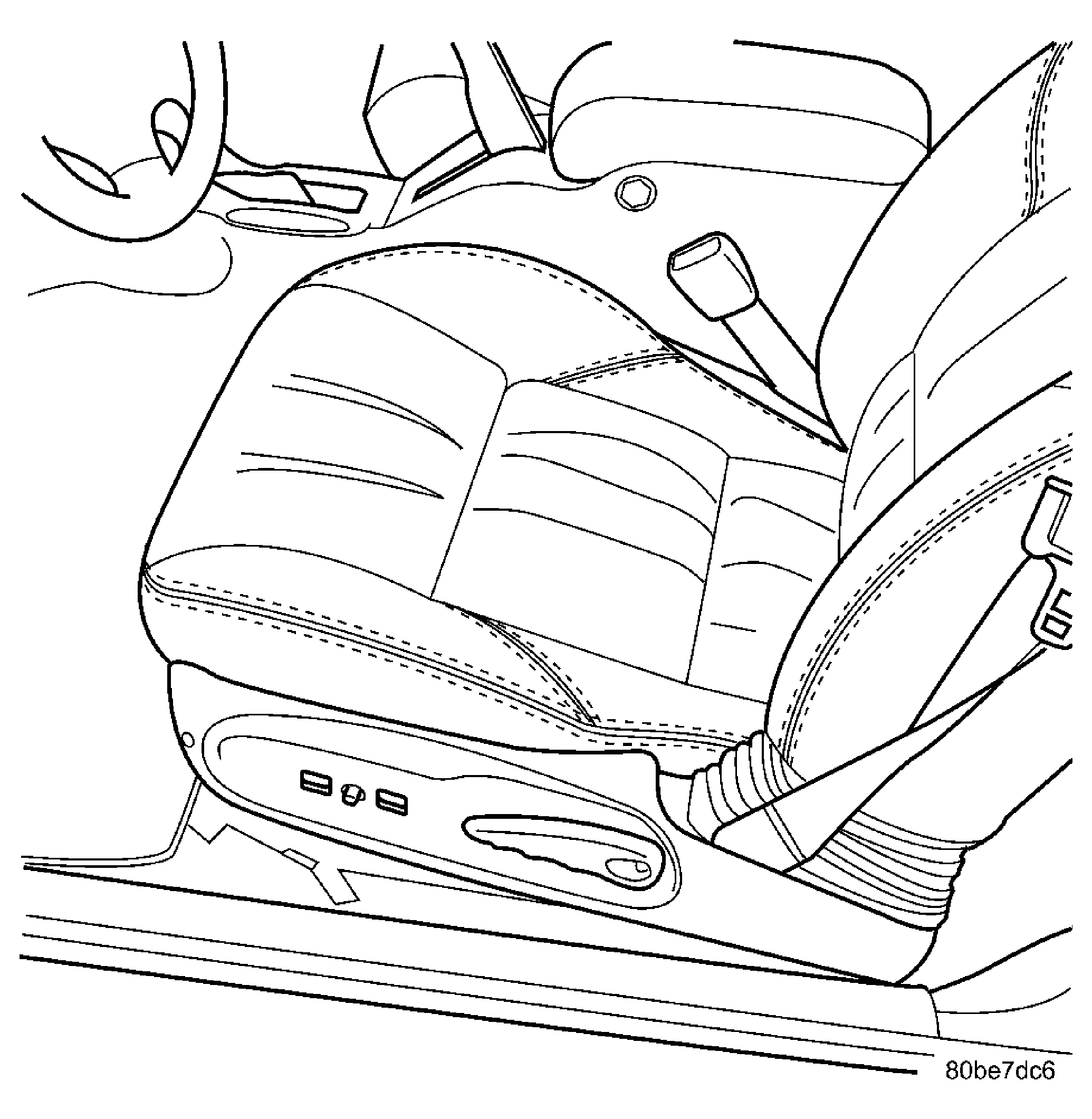

Fig 1: Driver Power Seat - Convertible

Courtesy of DAIMLERCHRYSLER CORP.

The power seat system allows the seating position to be adjusted forward, rearward, up, down, front up, front down, rear up or rear down. A eight-way power seat is standard on premium models and optional on others. This option includes a six-way adjustable seat cushion track and a two-way power seat back. The eight-way power seat is also available with the heated seat system (Export Only). Refer to HEATED SEAT SYSTEM for more information on the heated seat option. The power seat system includes the following components:

Power seat switch
Power seat track.
Power seat system fuse and circuit breaker

Refer to the appropriate SYSTEM WIRING DIAGRAMS article for complete circuit diagrams. Following are component descriptions, theory of operation and removal and installation procedures for the power seat system components.
