Pressure Port Locations

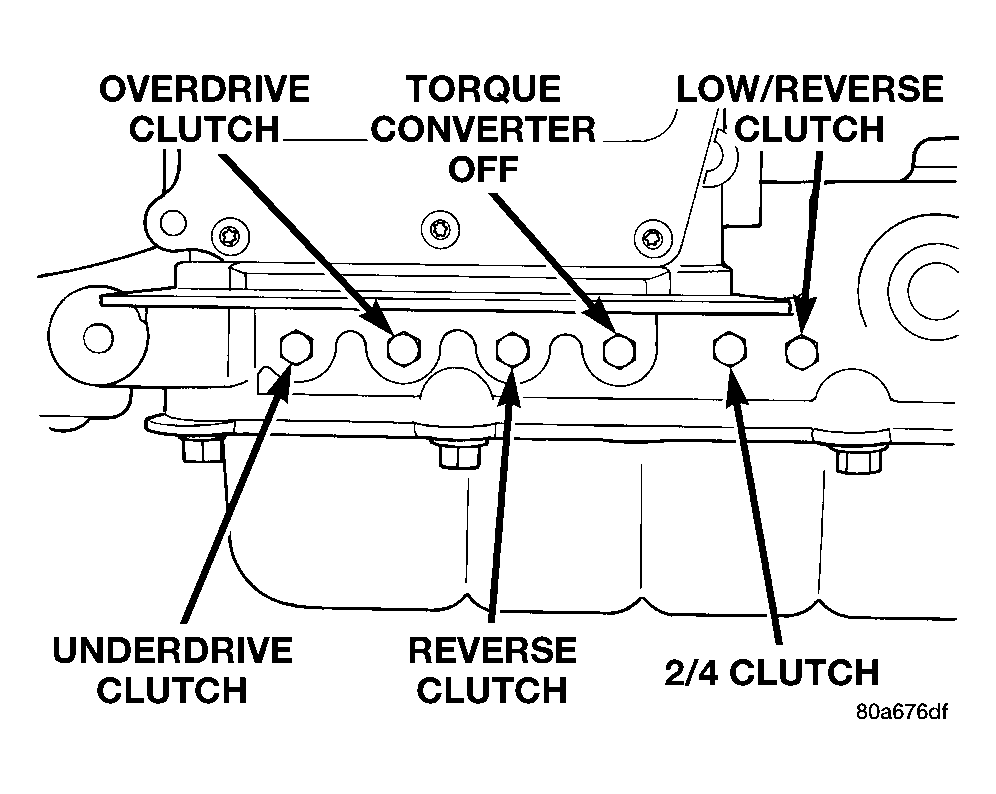

Fig 1: Identifying Overdrive Clutch, Reverse Clutch And Torque Converter

G04528411

Courtesy of CHRYSLER
