Power Window System

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

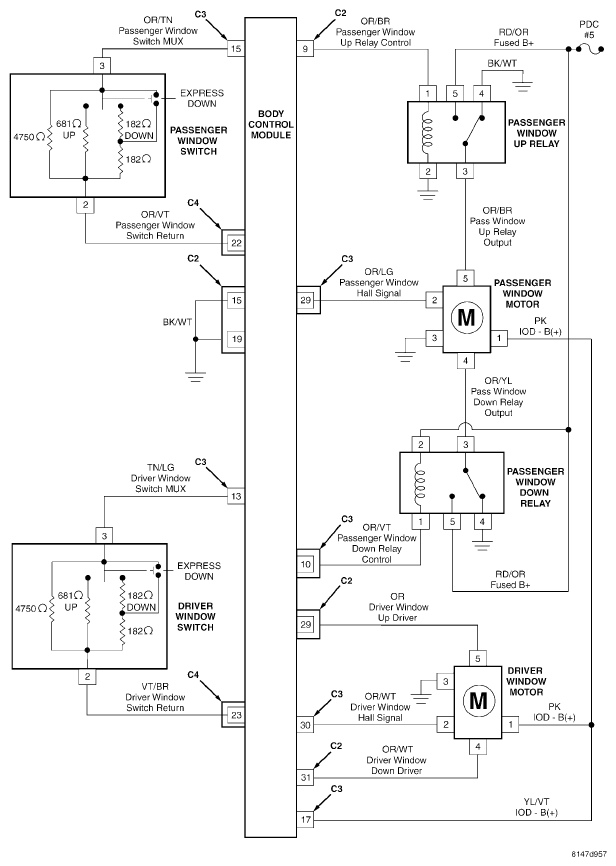

Fig 1: Power Window System - Schematic Diagrams
G04763918Courtesy of CHRYSLER
