Vehicle Preparation
Position the vehicle on a level work surface. Using screw or bottle jacks, adjust the vehicle PLP heights to the specified dimension above a level work surface. Vertical dimensions can be taken from the work surface to the locations indicated were applicable.
INDEX
| DESCRIPTION | FIGURE |
|---|---|

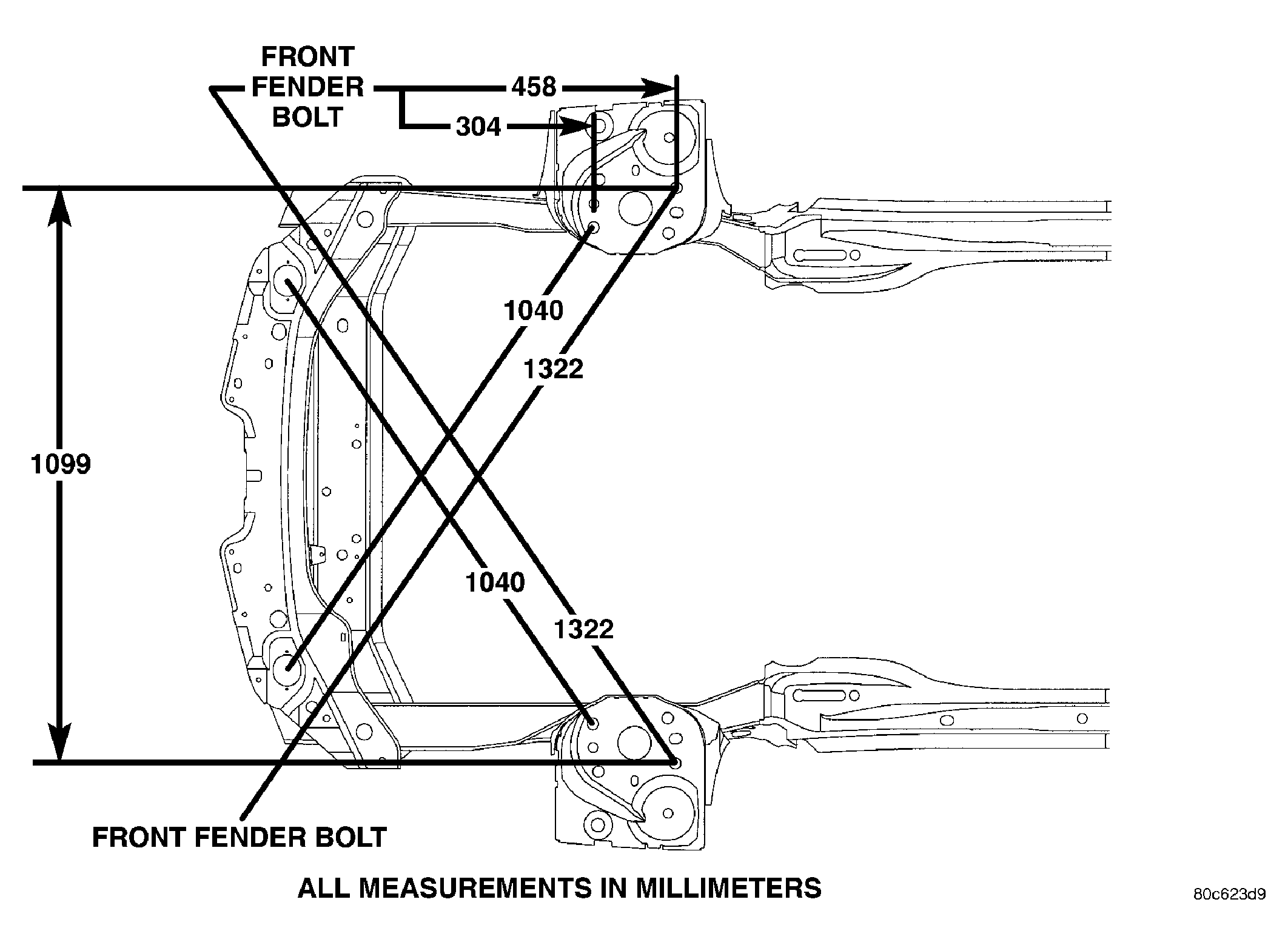

| ENGINE COMPARTMENT TOP VIEW | Fig 1. |

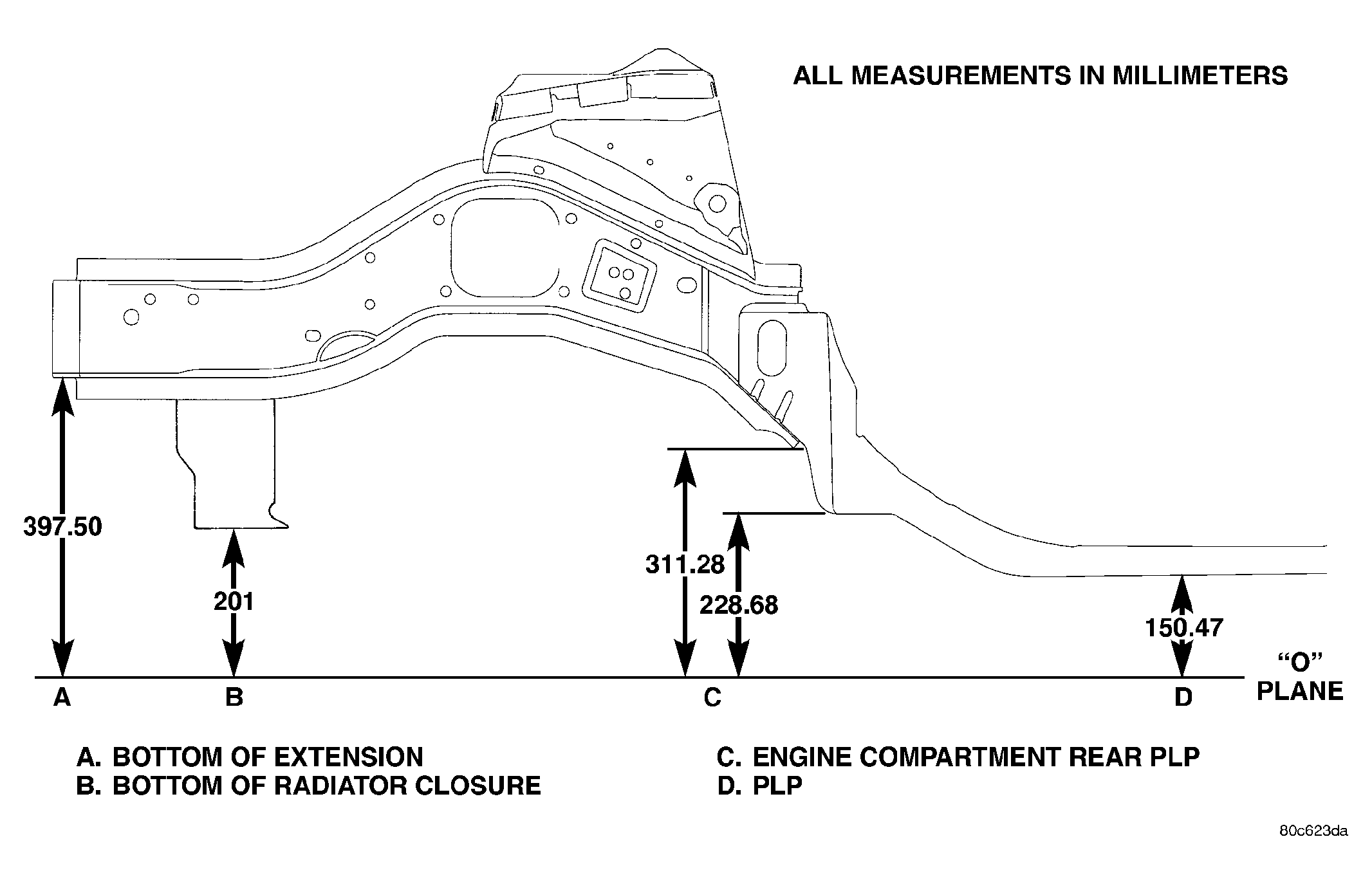

| ENGINE COMPARTMENT SIDE VIEW | Fig 2. |

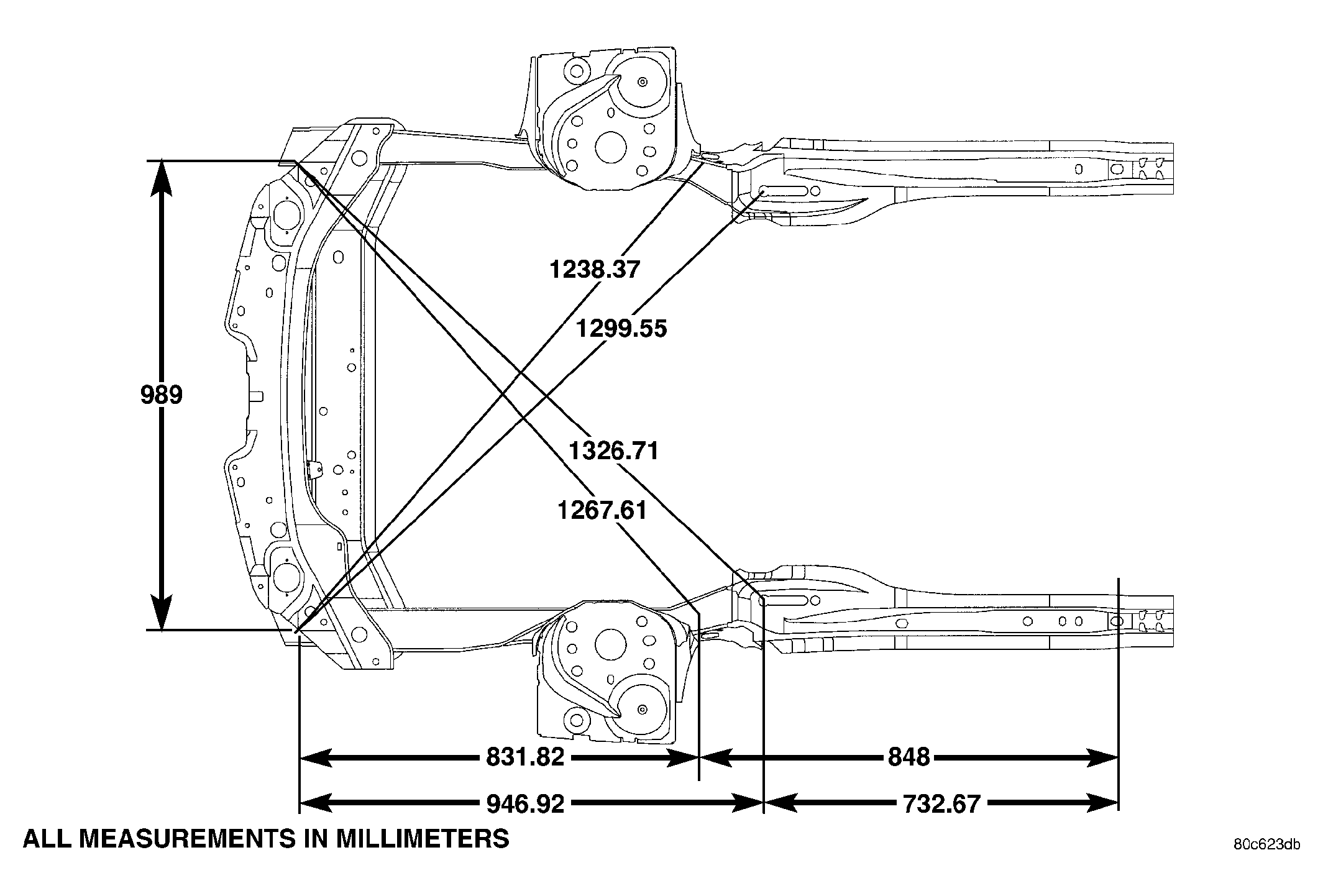

| FORWARD FRAME SECTION BOTTOM VIEW | Fig 3. |

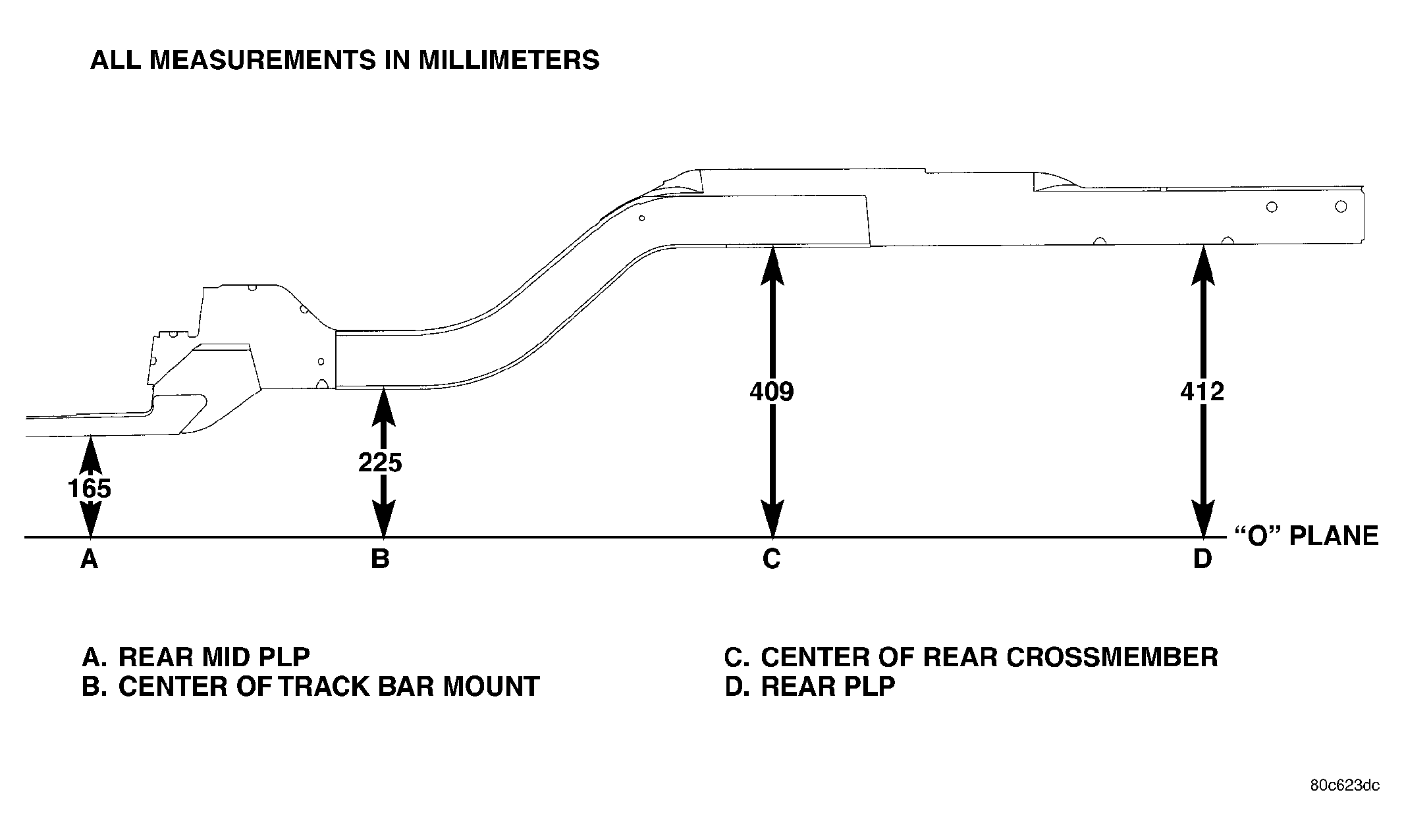

| REAR FRAME SECTION SIDE VIEW | Fig 4. |

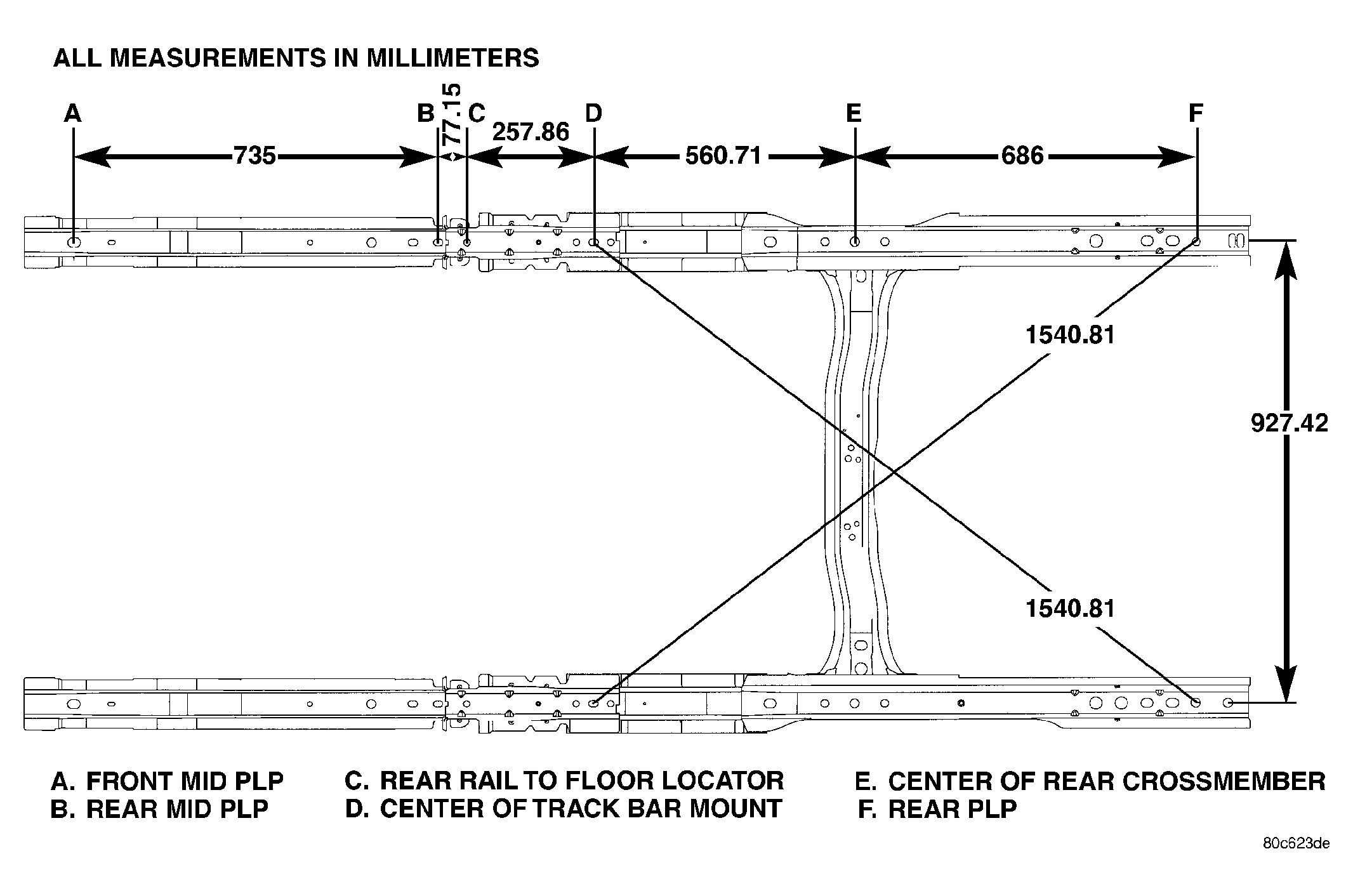

| REAR FRAME SECTION BOTTOM VIEW | Fig 5. |
