Driver Airbag Squib Connector End View

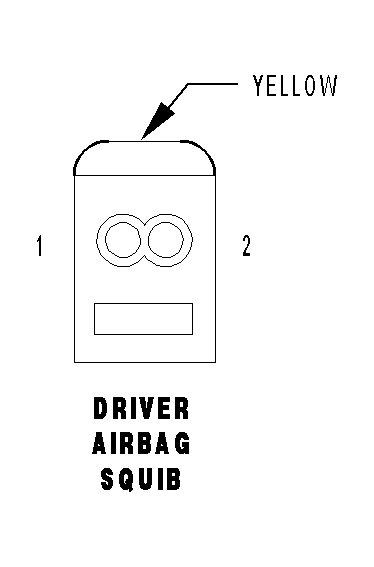

DRIVER AIRBAG SQUIB - YELLOW 2 WAY

GCZH680098Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 - DRIVER SQUIB LINE 2
2 - DRIVER SQUIB LINE 1
