Wiper Linkage: Installation

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reinstall the wiper motor onto the wiper linkage module. (Refer to ELECTRICAL/WIPERS/WASHERS/FRONT WIPER MOTOR - INSTALLATION) .

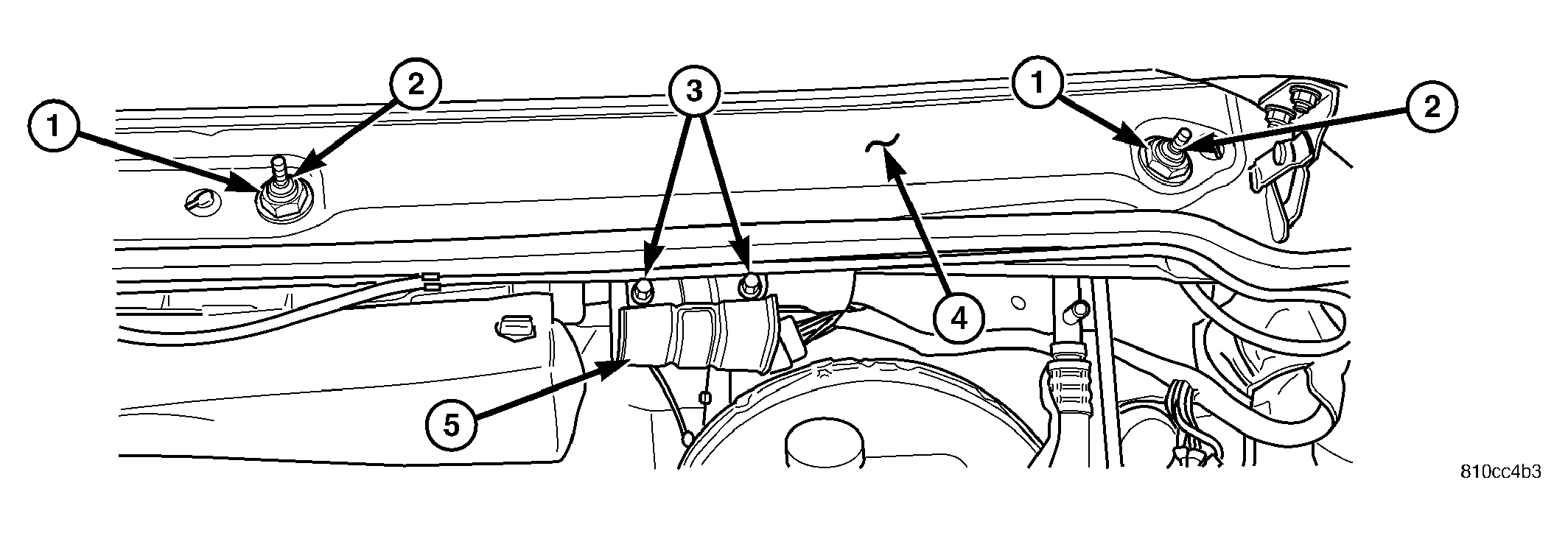

  2. Carefully position the wiper linkage module and wiper motor to the underside of the cowl top panel as a unit. See Figure.
  3. Install and tighten the two screws that secure the wiper linkage module motor bracket to the flange on the underside of the cowl top panel. Tighten the screws to 6 N.m (50 in. lbs.).
  4. Install and tighten the nut and washer that secures each wiper pivot housing to the outside of the cowl top panel.
  5. Reconnect the wiper motor pigtail wire connector to the vehicle wire harness connector.

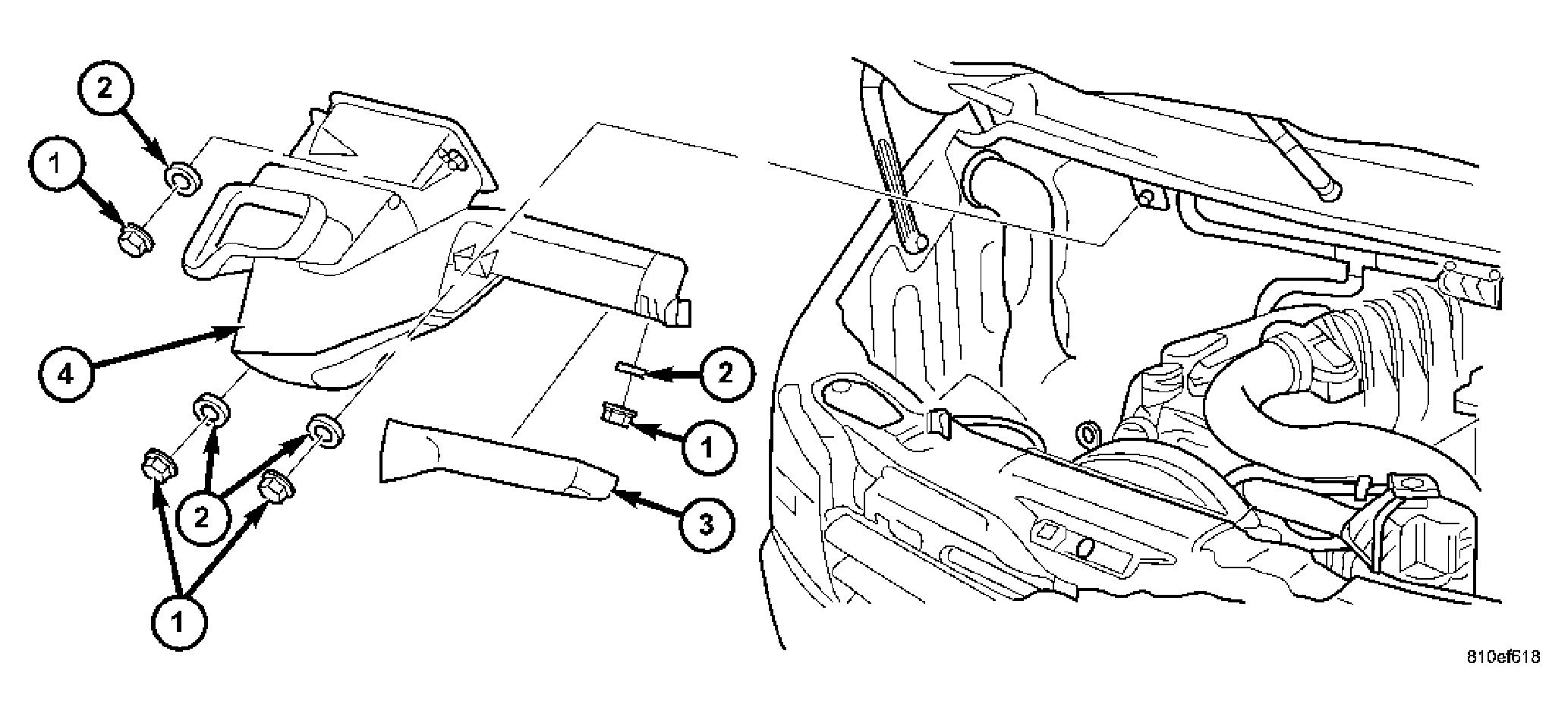

  6. Reinstall the ventilation housing onto the dash panel and the underside of the cowl top panel. See Figure.
  7. Reinstall the wiper arms onto the wiper pivots. (Refer to ELECTRICAL/WIPERS/WASHERS/WIPER ARM - INSTALLATION) .
  8. Reconnect the battery negative cable.
