Left Park Lamp Connector End View

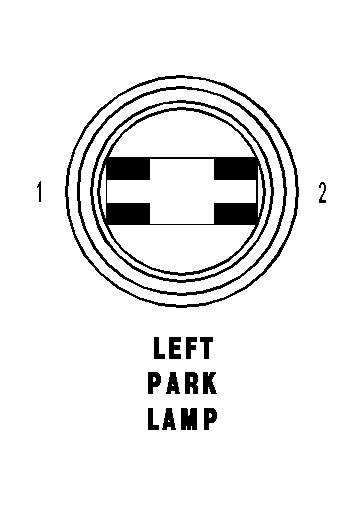

LEFT PARK LAMP - 2 WAY

GCZH680151Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 18BR GROUND
2 18DG/WT (EXCEPT EXPORT) FUSED ILLUMINATION CONTROL MODULE OUTPUT
2 18GY/BK (EXPORT) FUSED ILLUMINATION CONTROL MODULE OUTPUT
