Coil On Plug 4 Connector End View

COIL ON PLUG NO. 4 - BLACK 3 WAY

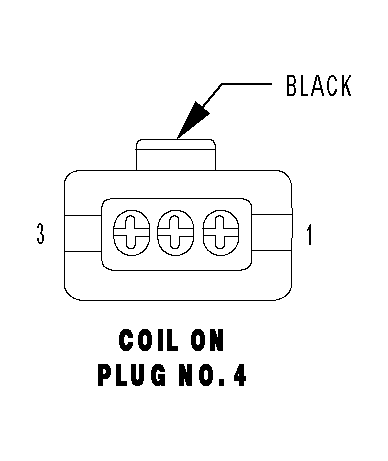

GCZH680087Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 18BL COIL ON PLUG DRIVER NO. 4
2 18BK/YL FUSED IGNITION SWITCH OUTPUT
3 18BL/WT COIL ON PLUG DRIVER NO. 4
