Cockpit Side Inline Connector End View (C232)
Cockpit Side Inline Connector End View (C232)

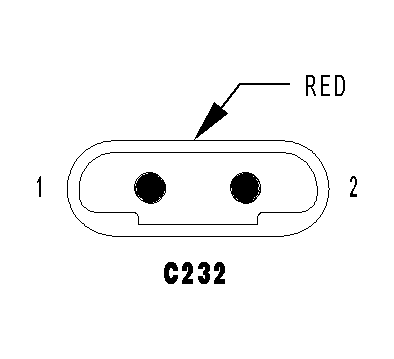

C232 - RED (COCKPIT SIDE)
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
1
20VT
2
20DG
Courtesy of DAIMLERCHRYSLER CORP.
