Charts And Graphs Charts

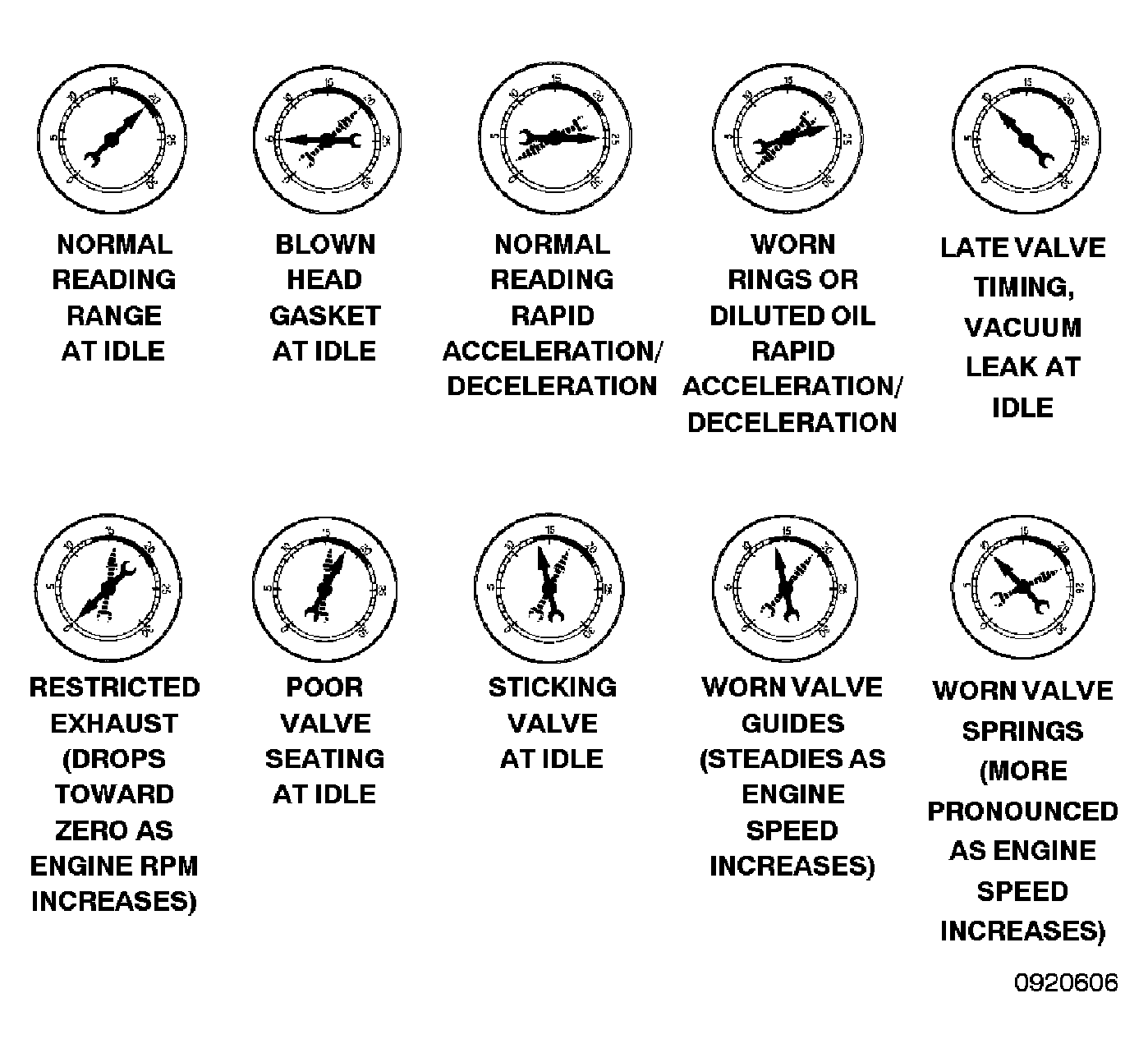

Fig 1: Vacuum Gauge Reading Charts

Courtesy of DAIMLERCHRYSLER CORP.

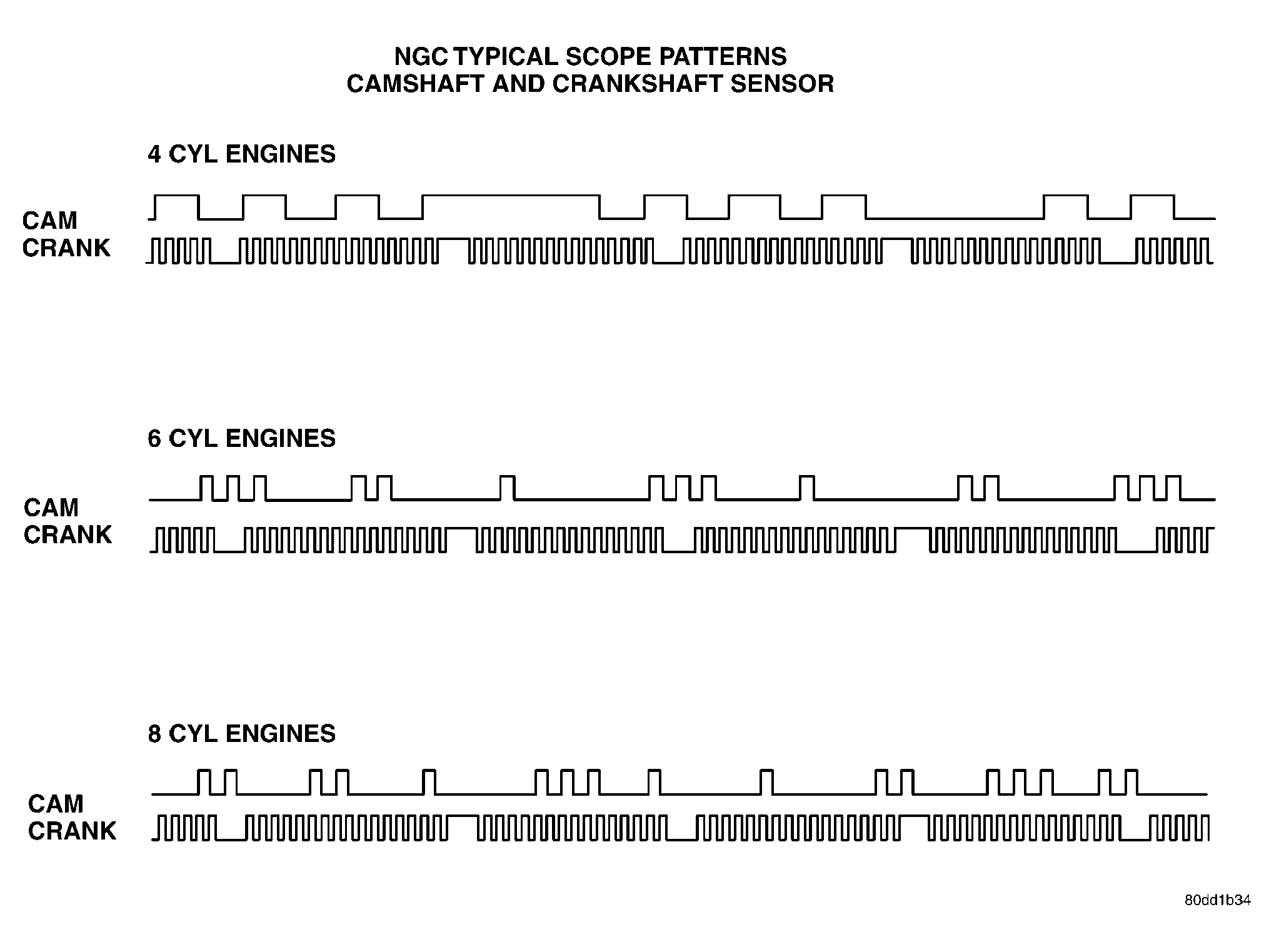

Fig 2: Camshaft And Crankshaft Sensors Pattern Chart

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: EELD Calibration Tool

Courtesy of DAIMLERCHRYSLER CORP.

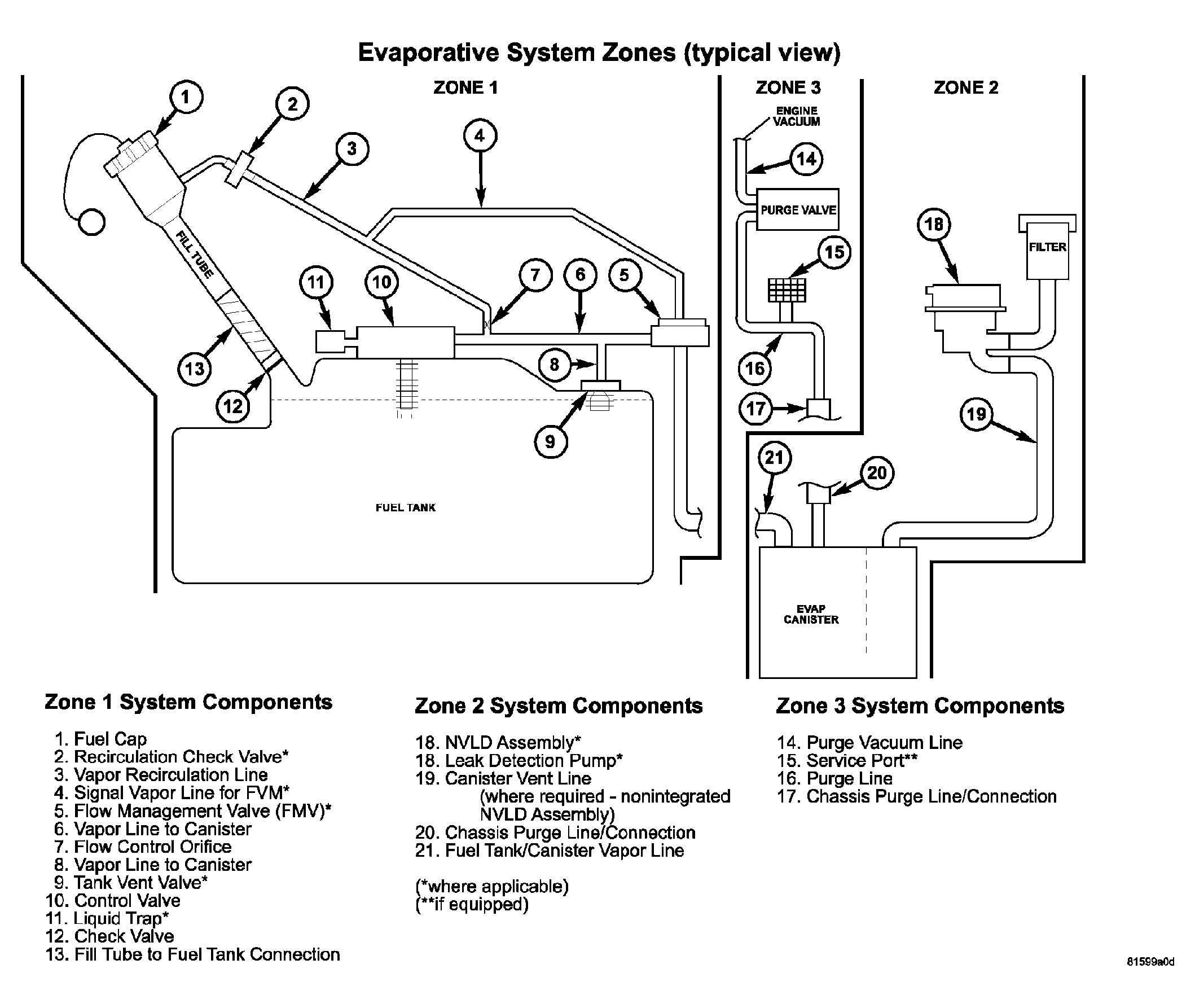

Fig 4: Evaporative System Zones - Line Diagram

Courtesy of DAIMLERCHRYSLER CORP.
