Torque Strut: Installation

WARNING: This page is about a different variant/trim than selected.

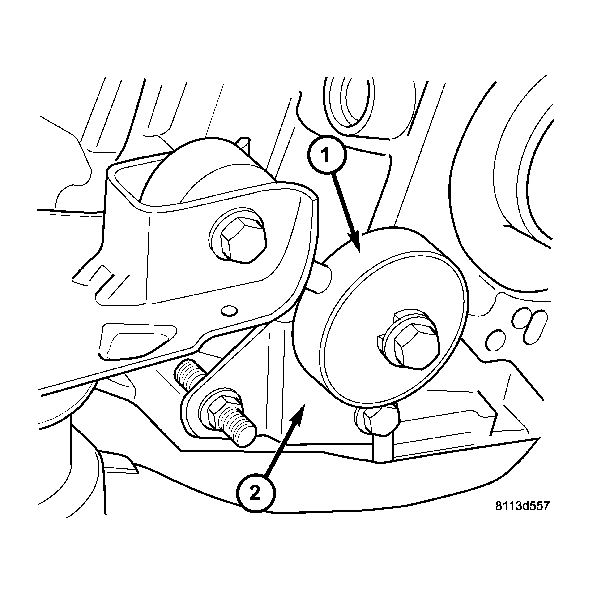

Fig 1: Powertrain Torque Strut
GC0000561Courtesy of DAIMLERCHRYSLER CORP.
1 - STRUT
2 - BRACKET
  1. Install the torque strut. See Fig 1. Tighten the fasteners to 54 N.m (40 ft.lbs.).
  2. Remove the floor jack
  3. Lower the vehicle.
  4. Reconnect the negative battery cable.
