Generator - Black 2 Way

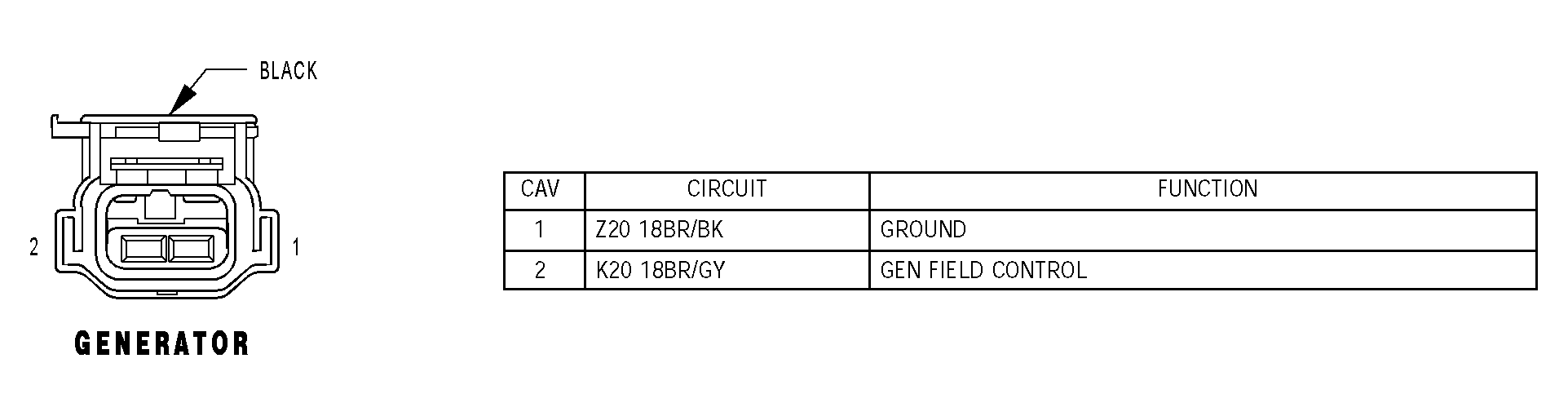

Fig 1: Identifying Generator Connector Pinouts

G04528114

Courtesy of DAIMLERCHRYSLER CORP.
