Battery Temperature Sensor - Black 2 Way

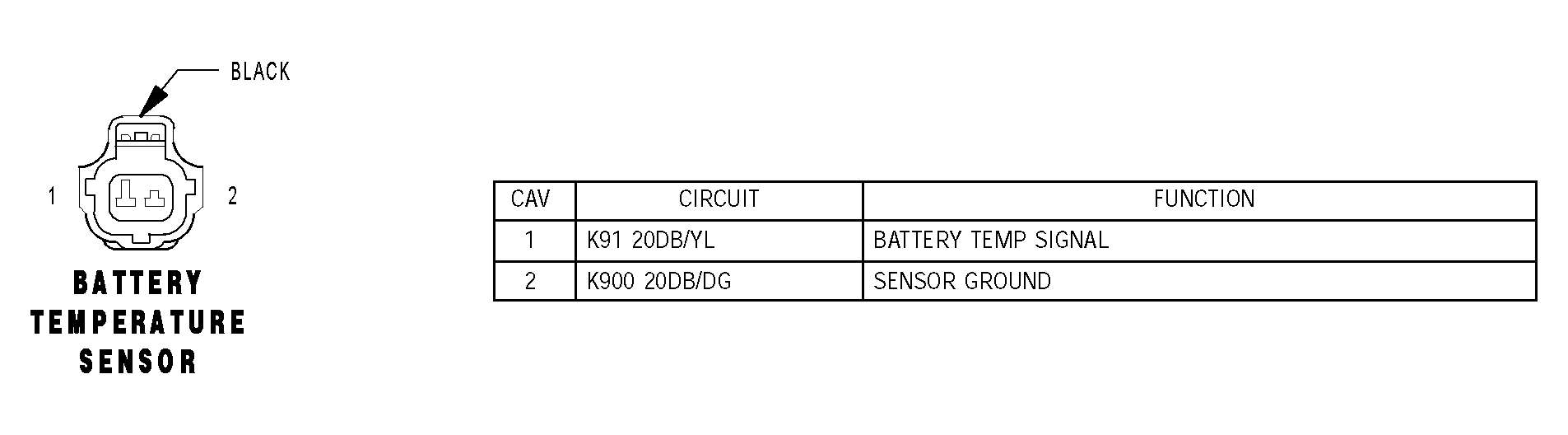

Fig 1: Identifying Battery Temperature Sensor Connector Pinouts

G04528088

Courtesy of DAIMLERCHRYSLER CORP.
