Left Turn Signal Lamp (Export) Connector End View
Left Turn Signal Lamp (Export) Connector End View

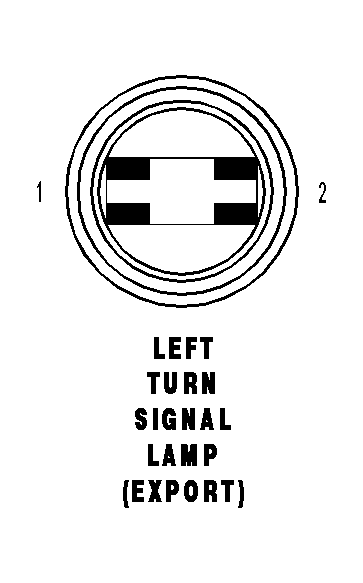

LEFT TURN SIGNAL LAMP (EXPORT) - 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
18BR
GROUND
2
18BK/WT
LEFT TURN SIGNAL OUTPUT
